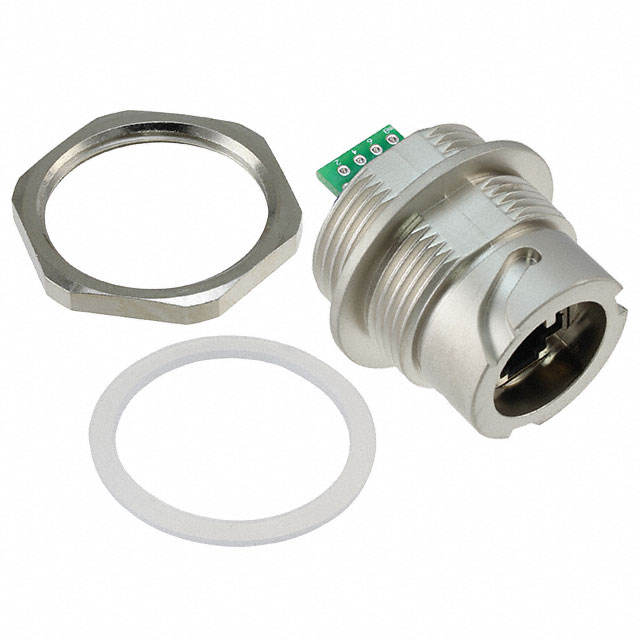

17-102184

Active

Amphenol CONEC

CONN MOD JACK 8P8C SHLD

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN MOD JACK 8P8C SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	17-102184

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Potted, Circular Bayonet Coupling
Housing Material	Zinc Die Cast, Nickel Plated
Ingress Protection	IP67 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Shielded
Tab Direction	User Selectable
Termination	PC Board, Solder

Part	Contact Material	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Housing Material	Tab Direction	Orientation	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	LED Color	Contact Finish	Ratings	Termination	Features	Number of Positions/Contacts	Ingress Protection	Connector Type	Number of Ports	Cable Type	Color	Style	Length [x]	Length [x]
Amphenol CONEC 17-102184	Phosphor Bronze	Shielded	85 °C	-40 °C	Bulkhead Panel Mount	Zinc Die Cast Nickel Plated	User Selectable	Straight	1	50 µin	1.27 µm	Does Not Contain LED	Gold	Cat5e	PC Board Solder	Circular Bayonet Coupling Potted	8p8c (RJ45 Ethernet)	IP67 - Dust Tight Waterproof	Jack	1
Amphenol CONEC 17-102154		Unshielded			Free Hanging (In-Line)											Circular Bayonet Coupling Molded Plugs	8p8c (RJ45 Ethernet)		Plug to Plug		Round Cable	Black	Cat5e Industrial Environments - IP67
Amphenol CONEC 17-102144		Unshielded			Free Hanging (In-Line)											Circular Bayonet Coupling Molded Plugs	8p8c (RJ45 Ethernet)		Plug to Plug		Round Cable	Black	Cat5e Industrial Environments - IP67	4 m	13.12 ft
Amphenol CONEC 17-102114		Shielded			Free Hanging (In-Line)											Circular Bayonet Coupling Molded Plugs	8p8c (RJ45 Ethernet)		Plug to Plug		Round Cable	Black	Cat5e Industrial Environments - IP67	4 m	13.12 ft
Amphenol CONEC 17-102124		Shielded			Free Hanging (In-Line)											Circular Bayonet Coupling Molded Plugs	8p8c (RJ45 Ethernet)		Plug to Plug		Round Cable	Black	Cat5e Industrial Environments - IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat5e
