PTT-102-01-L-S

Active

Samtec Inc.

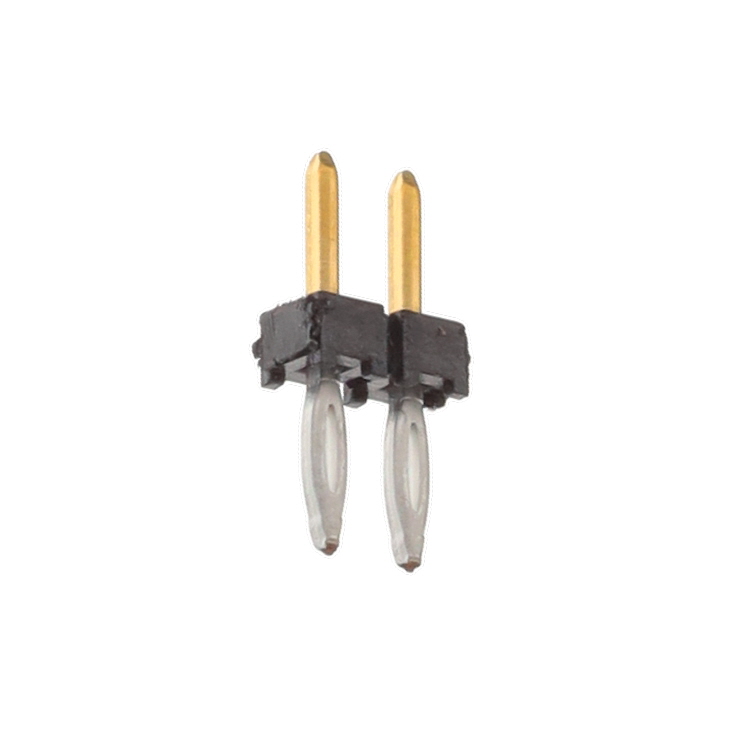

CONN UNSHROUDED HEADER HDR 2 POS 2MM PRESS FIT ST TOP ENTRY THRU-HOLE BULK

Search across all available documentation for this part.

Active

Samtec Inc.

CONN UNSHROUDED HEADER HDR 2 POS 2MM PRESS FIT ST TOP ENTRY THRU-HOLE BULK

Technical Specifications

Parameters and characteristics for this part

Specification	PTT-102-01-L-S

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.2 mm
Contact Length - Mating	0.126 "
Contact Length - Post	0.111 in
Contact Length - Post	2.82 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.9 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.079 in
Insulation Height	2 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.316 in
Overall Contact Length	8.03 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Unshrouded
Termination	Solder, Press-Fit

Part	Insulation Color	Contact Finish - Mating	Connector Type	Number of Positions Loaded	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Material	Current Rating (Amps)	Termination	Number of Rows	Contact Shape	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Post	Contact Type	Overall Contact Length	Overall Contact Length	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating
Samtec Inc. PTT-102-01-L-S	Black	Gold	Header	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Unshrouded	Phosphor Bronze	2.9 A	Press-Fit Solder	1	Square	2	0.079 in	2 mm	Tin	Male Pin	0.316 in	8.03 mm	Push-Pull	10 çin	0.25 çm	Through Hole	3.2 mm	0.126 "	0.079 in	2 mm	0.111 in	2.82 mm
Samtec Inc. PTT-102-01-S-D	Black	Gold	Header	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Unshrouded	Phosphor Bronze	2.9 A	Press-Fit Solder	2	Square	4	0.079 in	2 mm	Tin	Male Pin	0.316 in	8.03 mm	Push-Pull	30 Áin	0.76 Ám	Through Hole	3.2 mm	0.126 "	0.079 in	2 mm	0.111 in	2.82 mm	0.079 in	2 mm
Samtec Inc. PTT-102-01-S-S	Black	Gold	Header	All	Liquid Crystal Polymer (LCP)	-55 °C	125 °C	Unshrouded	Phosphor Bronze	2.9 A	Press-Fit Solder	1	Square	2	0.079 in	2 mm	Tin	Male Pin	0.316 in	8.03 mm	Push-Pull	30 Áin	0.76 Ám	Through Hole	3.2 mm	0.126 "	0.079 in	2 mm	0.111 in	2.82 mm
