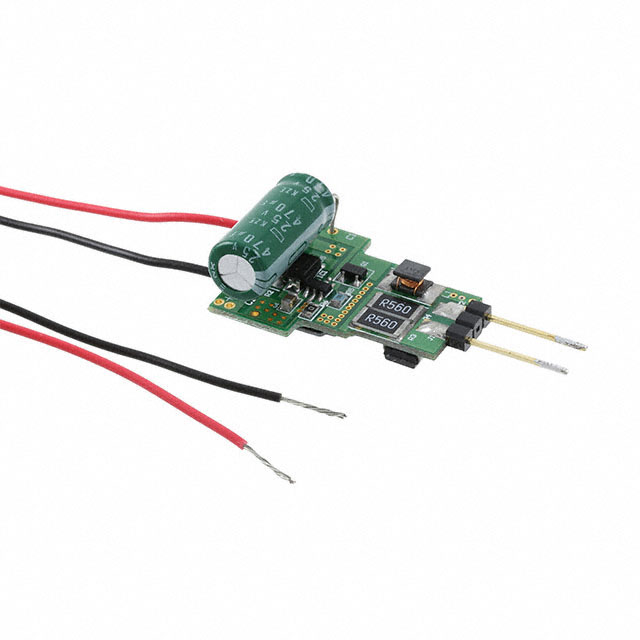

MR16 7W BOARD

Unknown

Infineon Technologies

EVAL BOARD MR16 7W ILD4001

Search across all available documentation for this part.

Unknown

Infineon Technologies

EVAL BOARD MR16 7W ILD4001

Technical Specifications

Parameters and characteristics for this part

Part	Supplied Contents	Current - Output / Channel	Outputs and Type	Voltage - Input	Voltage - Output	Utilized IC / Part	Voltage - Supply (Min) [Min]	Topology	Mounting Type	Applications	Number of Outputs	Type	Voltage - Supply (Max) [Max]	Dimming	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Frequency
Infineon Technologies MR16 7W BOARD	Board(s)	770 mA	1 Non-Isolated Output	12 VAC	6.5 V	ILD4001
Infineon Technologies ILD4001E6327HTSA1							4.5 V	Step-Down (Buck)	Surface Mount	Lighting	1	DC DC Controller	40 V	Analog PWM	SC-74	SC-74 SOT-457	150 °C	-40 °C	500 kHz
Infineon Technologies MR16 10W BOARD	Board(s)	1.02 A	1 Non-Isolated Output	12 VAC	6.6 V	ILD4001

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.35

General part information

ILD4001 - 1 Non-Isolated Output LED Driver Evaluation Board
