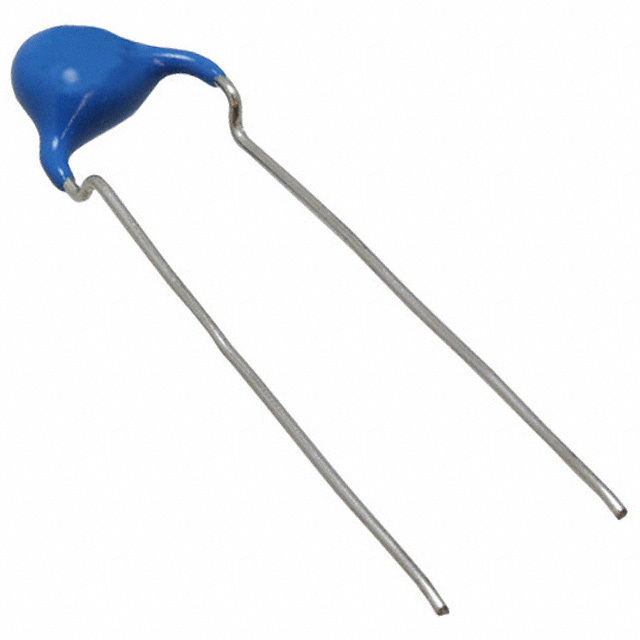

C907U152MYVDBA7317

Active

KEMET

CAP CER 1500PF 400VAC Y5V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMiscellaneous EN Manufacturer Catalogue EN +3

C907U152MYVDBA7317

Active

KEMET

CAP CER 1500PF 400VAC Y5V RADIAL

Deep-Dive with AI

DocumentsMiscellaneous EN Manufacturer Catalogue EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C907U152MYVDBA7317

Applications	Safety
Capacitance	1500 pF
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings [custom]	2
Ratings [custom]	1
Size / Dimension [diameter]	7 mm
Size / Dimension [diameter]	0.276 in
Temperature Coefficient	Y5V (F)
Tolerance	20 %
Voltage - Rated	400 VAC

C907U Series

...

Part	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Lead Style	Package / Case	Applications	Ratings [custom]	Ratings [custom]	Mounting Type	Tolerance	Voltage - Rated	Temperature Coefficient
KEMET C907U510JYSDBA7317	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	51 pF	Formed Leads - Kinked	Disc Radial	Safety	2	1	Through Hole	5 %	400 VAC	SL
KEMET C907U152MYVDBA7317	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	1500 pF	Formed Leads - Kinked	Disc Radial	Safety	2	1	Through Hole	20 %	400 VAC	Y5V (F)
KEMET C907U270JYSDCAWL40	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	27 pF	Formed Leads - Kinked	Disc Radial	Safety	2	1	Through Hole	5 %	400 VAC	SL
KEMET C907U102MYWDBAWL40	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	0.001 µF	Formed Leads - Kinked	Disc Radial	Safety	2	1	Through Hole	20 %	400 VAC	Y5U (E)
KEMET C907U200JYSDCAWL35	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	20 pF	Formed Leads - Kinked	Disc Radial	Safety	2	1	Through Hole	5 %	400 VAC	SL
KEMET C907U240JYSDCAWL40	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	24 pF	Formed Leads - Kinked	Disc Radial	Safety	2	1	Through Hole	5 %	400 VAC	SL
KEMET C907U220JZSDCA7317	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	22 pF	Formed Leads - Kinked	Disc Radial	Safety	2	1	Through Hole	5 %	440 VAC	SL
KEMET C907U120JZSDCAWL35	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	12 pF	Formed Leads - Kinked	Disc Radial	Safety	2	1	Through Hole	5 %	440 VAC	SL
KEMET C907U100JYSDAAWL20	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	10 pF	Straight	Disc Radial	Safety	2	1	Through Hole	5 %	400 VAC	SL
KEMET C907U200JYSDCAWL40	7.5 mm	0.295 in	125 °C	-40 °C	7 mm	0.276 in	20 pF	Formed Leads - Kinked	Disc Radial	Safety	2	1	Through Hole	5 %	400 VAC	SL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.29
	Tape & Box (TB)	10000	$ 0.06
Newark	Each (Supplied on Full Reel)	10000	$ 0.06
		20000	$ 0.05
		30000	$ 0.05
		50000	$ 0.04

Description

General part information

C907U Series

1500 pF ±20% 400VAC Ceramic Capacitor Y5V (F) Radial, Disc
