Q-2M01L000R003M

Active

Amphenol Custom Cable

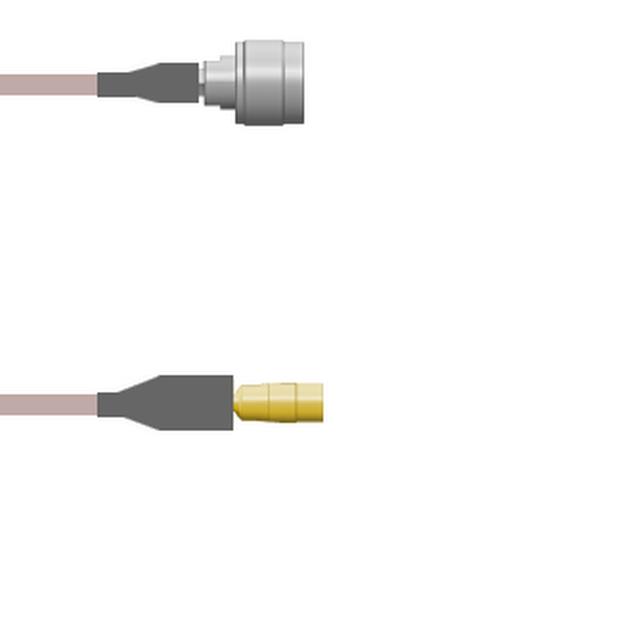

CBL ASSY MMCX-NTYPE JCK-PLG 9.8'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2M01L000R003M

Active

Amphenol Custom Cable

CBL ASSY MMCX-NTYPE JCK-PLG 9.8'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2M01L000R003M

1st Connector	MMCX Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	3 m
Length	118.1 in
Length	9.8 '
Overall Impedance	50 Ohms
Style	MMCX to N-Type

Q-2M01L0 Series

Part	1st Contact Gender	Overall Impedance	Length	Length	2nd Connector Mounting Type	Cable Type	2nd Contact Gender	Frequency - Max [Max]	Color	1st Connector Mounting Type	Features	1st Connector	2nd Connector	Style	Length
Amphenol Custom Cable Q-2M01L000R006i	Female	50 Ohms	152.4 mm	6 in	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type
Amphenol Custom Cable Q-2M01L000R003M	Female	50 Ohms	3 m	118.1 in	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type	9.8 '
Amphenol Custom Cable Q-2M01L000R084i	Female	50 Ohms	2.1 m	84 in	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type	7 ft
Amphenol Custom Cable Q-2M01L000R060i	Female	50 Ohms	1.5 m	5 '	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type	5 ft
Amphenol Custom Cable Q-2M01L000R001M	Female	50 Ohms	1 m	39.4 in	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type	3.3 ft
Amphenol Custom Cable Q-2M01L000R1.5M	Female	50 Ohms	1.5 m	59.1 in	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type	4.9 ft
Amphenol Custom Cable Q-2M01L000R108i	Female	50 Ohms	2.7 m	108 in	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type	9 ft
Amphenol Custom Cable Q-2M01L000R002M	Female	50 Ohms	2 m	78.7 in	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type	6.6 ft
Amphenol Custom Cable Q-2M01L000R048i	Female	50 Ohms	1200 mm	48 in	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type	4 ft
Amphenol Custom Cable Q-2M01L000R072i	Female	50 Ohms	1.8 m	72 in	Free Hanging (In-Line)	RG-316 DB	Male	6000 MHz	Copper	Free Hanging (In-Line)	Shielded	MMCX Jack	N-Type Plug	MMCX to N-Type	6 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 355.42
		25	$ 330.66
		50	$ 305.90
		100	$ 284.67
		250	$ 266.98

Description

General part information

Q-2M01L0 Series

Cable Assembly Coaxial MMCX to N-Type RG-316 DB 118.1" (3.0m) 9.8'

Documents

Technical documentation and resources

No documents available
