VT-820-FFE-256C-27M6480000TR
Active3.2X2.5MM SMD CLIPPED SINEWAVE
Deep-Dive with AI
Search across all available documentation for this part.
VT-820-FFE-256C-27M6480000TR
Active3.2X2.5MM SMD CLIPPED SINEWAVE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VT-820-FFE-256C-27M6480000TR |
|---|---|
| Absolute Pull Range (APR) | 10 ppm |
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 2 mA |
| Frequency | 27.648 MHz |
| Frequency Stability | 2.5 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Clipped Sine Wave |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [x] | 0.126 in |
| Size / Dimension [y] | 2.5 mm |
| Size / Dimension [y] | 0.098 in |
| Type | TCXO |
| Voltage - Supply | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Microchip Direct | T/R | 1 | $ 33.67 | |
| 25 | $ 28.06 | |||
| 100 | $ 25.50 | |||
| 1000 | $ 24.64 | |||
| 5000 | $ 24.37 | |||
VT-820 Series
3.2x2.5mm SMD Clipped Sinewave
| Part | Output | Operating Temperature [Max] | Operating Temperature [Min] | Current - Supply (Max) [Max] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Frequency Stability | Type | Frequency | Base Resonator | Voltage - Supply | Package / Case | Absolute Pull Range (APR) | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology VT-820-FFE-256C-27M6480000TR | Clipped Sine Wave | 85 °C | -40 °C | 2 mA | 0.039 " | 1 mm | 2.5 ppm | TCXO | 27.648 MHz | Crystal | 3 V | 4-SMD, No Lead | 10 ppm | 3.2 mm | 2.5 mm | 0.126 in | 0.098 in | Surface Mount |
Description
General part information
VT-820 Series

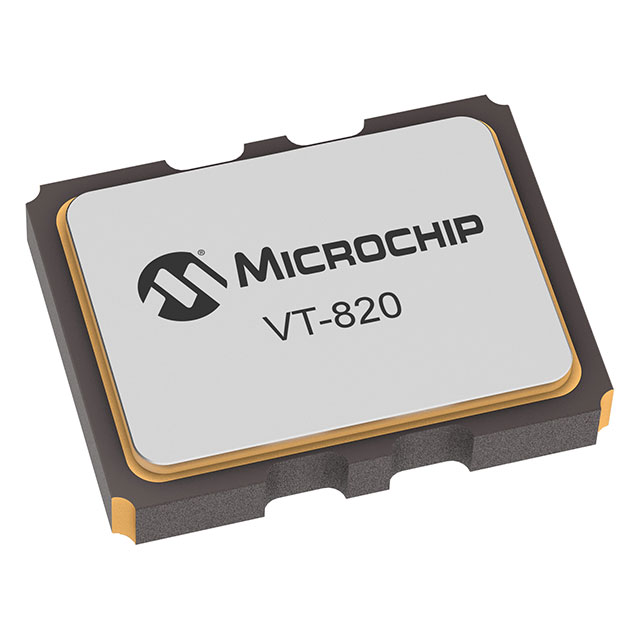

Microchip's VT-820 Temperature Compensated Crystal Oscillator (TCXO) is a quartz stabilized, Clipped Sine Wave output, analog temperature compensated oscillator operating off a 1.8, 2.8, 3.0 or 3.3 volt supply in a hermetically sealed 3.2x2.5 ceramic package.
\*\*\*The VT-820 is EOL and the alternate product family is our VT-820A series. Please contact your local sales office for more information\*\*\*
