EM-SGL-PG11-MET-C

Active

TE Connectivity ENTRELEC

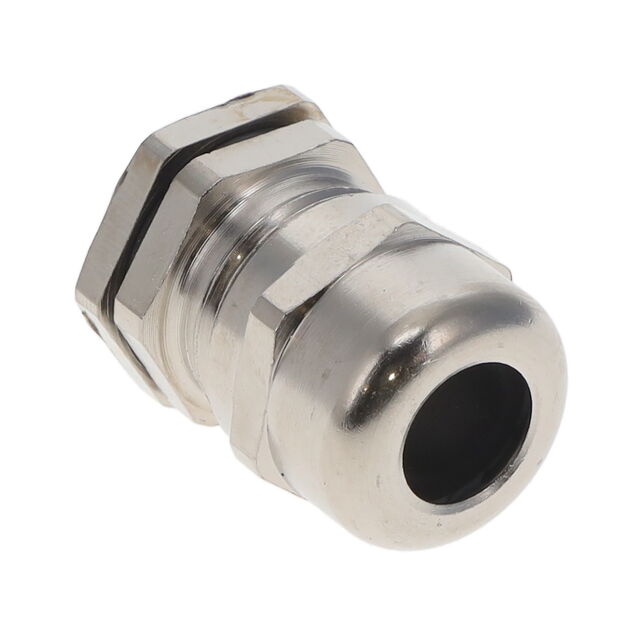

CABLE GLAND 5-10MM PG11 BRASS

Search across all available documentation for this part.

Active

TE Connectivity ENTRELEC

CABLE GLAND 5-10MM PG11 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	EM-SGL-PG11-MET-C

Color	Silver
Includes	Locknut, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.394 "
Outside Cable Diameter (Max) [Max] [diameter]	10 mm
Outside Cable Diameter (Min) [Min]	5 mm
Outside Cable Diameter (Min) [Min]	0.197 in
Thread Length	0.236 in
Thread Length	6 mm
Thread Size	PG11
Type	Cable Gland

CABLE GLAND 5-10MM PG11 BRASS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Type	Ingress Protection	Color	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Material	Includes	Thread Length	Thread Length	Thread Size
TE Connectivity ENTRELEC EM-SGL-PG11-MET-C	100 °C	-20 C	5 mm	0.197 in	Cable Gland	IP68 - Dust Tight, Waterproof	Silver	0.394 "	10 mm	Brass, Nickel Plated	Locknut, Seal	0.236 in	6 mm	PG11

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG11 Silver
