807-043-559-107
ActiveEDAC Inc.

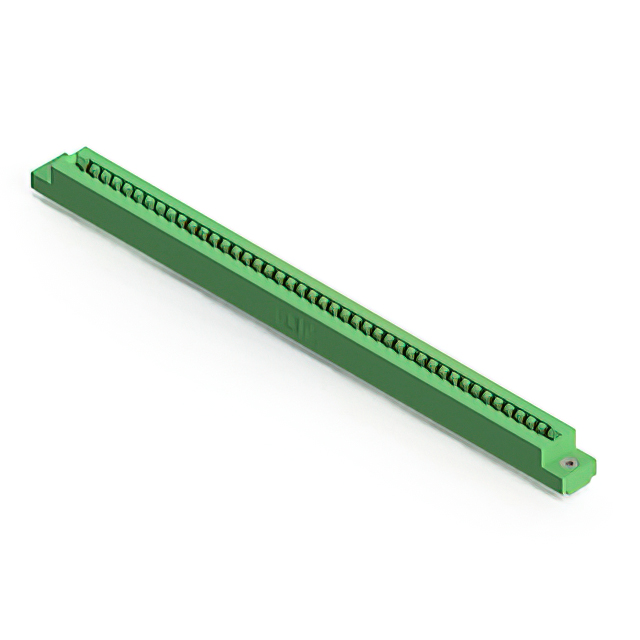

CARD EDGE CONNECTOR, 43 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
807-043-559-107
ActiveEDAC Inc.
CARD EDGE CONNECTOR, 43 CONTACT(S), 1 ROW(S), FEMALE, RIGHT ANGLE, 0.156 INCH PITCH, SOLDER TERMINAL, M3, GREEN INSULATOR,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 807-043-559-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 43 |
| Number of Positions/Bay/Row [custom] | 43 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
807-043 Series
...
| Part | Termination | Material - Insulation | Pitch [x] | Pitch [x] | Mounting Type | Color | Gender | Number of Rows | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Read Out | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Termination Rows | Contact Type | Card Type | Contact Finish | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions/Bay/Row [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole Right Angle | Green | Female | 2 | 86 | 125 °C | -40 °C | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 1 | Semi Bellows | Non Specified - Dual Edge | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 |
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole | Green | Female | 1 | 43 | 125 °C | -40 °C | Single | Copper Alloy | 1 | Semi Bellows | Non Specified - Single Edge | Tin | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 | ||||
EDAC Inc. | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole | Green | Female | 2 | 86 | 125 °C | -40 °C | Dual | Copper Alloy | 1 | Semi Bellows | Non Specified - Dual Edge | Tin | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 | ||||
EDAC Inc. | Wire Wrap | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole | Green | Female | 1 | 43 | 125 °C | -40 °C | Single | Copper Alloy | 1 | Semi Bellows | Non Specified - Single Edge | Tin | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 | ||||
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole | Green | Female | 1 | 43 | 125 °C | -40 °C | Single | 10 Áin | 0.25 Ám | Copper Alloy | 1 | Semi Bellows | Non Specified - Single Edge | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 |
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole | Green | Female | 1 | 43 | 125 °C | -40 °C | Single | Copper Alloy | 1 | Semi Bellows | Non Specified - Single Edge | Tin | 2.95 mm | Floating Bobbin Flush Mount | 0.116 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 | ||
EDAC Inc. | Wire Wrap | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole | Green | Female | 2 | 86 | 125 °C | -40 °C | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 1 | Semi Bellows | Non Specified - Dual Edge | Gold | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 |
EDAC Inc. | Solder | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole Right Angle | Green | Female | 1 | 43 | 125 °C | -40 °C | Single | 10 Áin | 0.25 Ám | Copper Alloy | 1 | Semi Bellows | Non Specified - Single Edge | Gold | Flush Mount M3 Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 | ||
EDAC Inc. | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole | Green | Female | 2 | 86 | 125 °C | -40 °C | Dual | 10 Áin | 0.25 Ám | Copper Alloy | 1 | Semi Bellows | Non Specified - Dual Edge | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 | ||
EDAC Inc. | Solder Eyelet(s) | Diallyl Phthalate (DAP) | 0.156 in | 3.96 mm | Through Hole | Green | Female | 1 | 43 | 125 °C | -40 °C | Single | Copper Alloy | 1 | Semi Bellows | Non Specified - Single Edge | Tin | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 43 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
807-043 Series
43 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green
