45-180S.2C90.003.108

Active

EAO

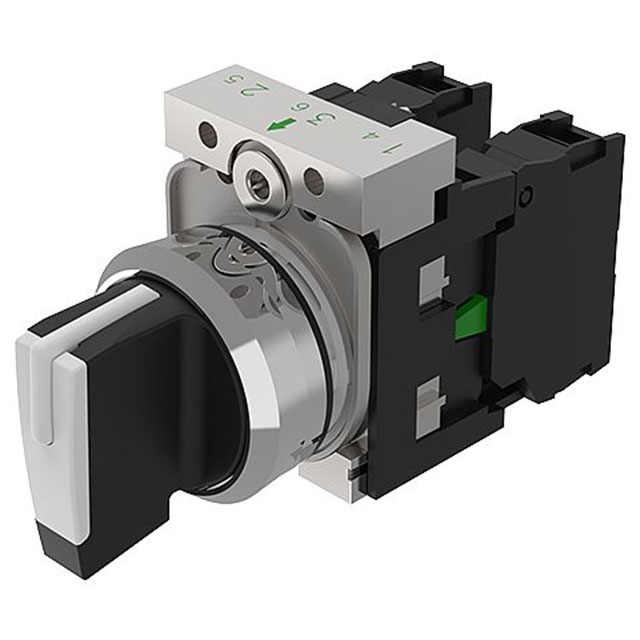

SWITCH SELECT 3POS DPST 10A 500V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 3POS DPST 10A 500V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	45-180S.2C90.003.108	45-180S Series

Approval Agency	UL, CSA, VDE, CCC, CE	UL, CSA, VDE, CCC, CE
Circuit	DPST-NO	DPST-NO
Current Rating (Amps)	10 A	10 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP69K, IP67, IP66	IP69K, IP67, IP66
Mechanical Life	1000000 Cycles	1000000 Cycles
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	Mom-Off-Mom	Mom-Off-Mom
Termination Style	Screw Terminal	Spring Terminal, Screw Terminal
Type	Standard	Standard
Voltage Rating - AC	500 V	500 V
Voltage Rating - DC	500 V	500 V

SWITCH SELECT 3POS DPST 10A 500V

Part	Mechanical Life	Current Rating (Amps)	Termination Style	Type	Ingress Protection	Circuit	Illumination	Switch Function	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Panel Cutout Dimensions [diameter]
EAO 45-180S.3C90.003.408	1000000 Cycles	10 A	Spring Terminal	Standard	IP66, IP67, IP69K	DPST-NO	Non-Illuminated	Mom-Off-Mom	500 V	500 V	70 °C	-25 °C	CCC, CE, CSA, UL, VDE	22.3 mm
EAO 45-180S.1C90.003.108	1000000 Cycles	10 A	Screw Terminal	Standard	IP66, IP67, IP69K	DPST-NO	Non-Illuminated	Mom-Off-Mom	500 V	500 V	70 °C	-25 °C	CCC, CE, CSA, UL, VDE	22.3 mm
EAO 45-180S.2C90.003.108	1000000 Cycles	10 A	Screw Terminal	Standard	IP66, IP67, IP69K	DPST-NO	Non-Illuminated	Mom-Off-Mom	500 V	500 V	70 °C	-25 °C	CCC, CE, CSA, UL, VDE	22.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 3 Position DPST-NO 10A (AC/DC) 500 V Panel Mount
