6609976-4

Active

TE Connectivity Raychem Cable Protection

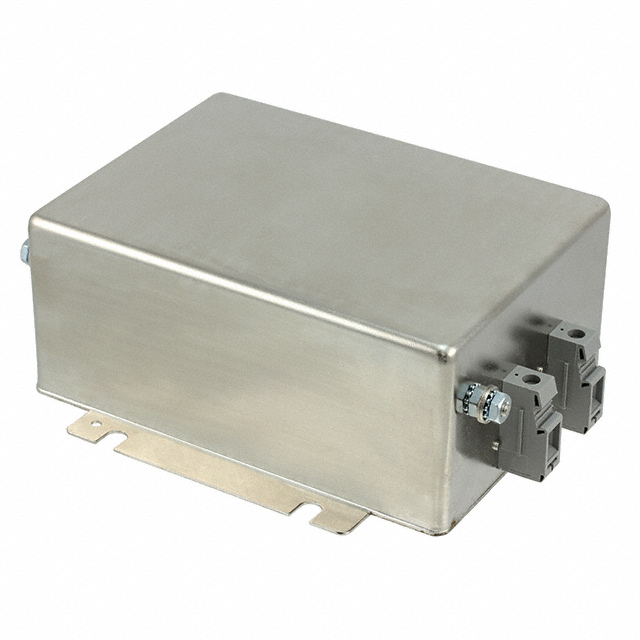

LINE FILTER 250VAC 36A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 36A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Specification	6609976-4

Applications	Power Drive Systems, Inverters
Configuration	Single Stage
Current	36 A
Filter Type	Single Phase
Frequency - Operating [Max]	60 Hz
Frequency - Operating [Min]	50 Hz
Mounting Type	Chassis Mount
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-10 °C
Termination Style	Terminal Block
Voltage - Rated AC	250 V

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Filter Type	Current	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Configuration	Termination Style	Applications	Voltage - Rated AC
TE Connectivity Raychem Cable Protection 6609976-4	60 Hz	50 Hz	Single Phase	36 A	-10 °C	40 °C	Chassis Mount	Single Stage	Terminal Block	Inverters Power Drive Systems	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	16	$ 147.33

General part information

Single Phase EMC/EMI Line Filter 36 A 250V 50/60Hz Single Stage Terminal Block
