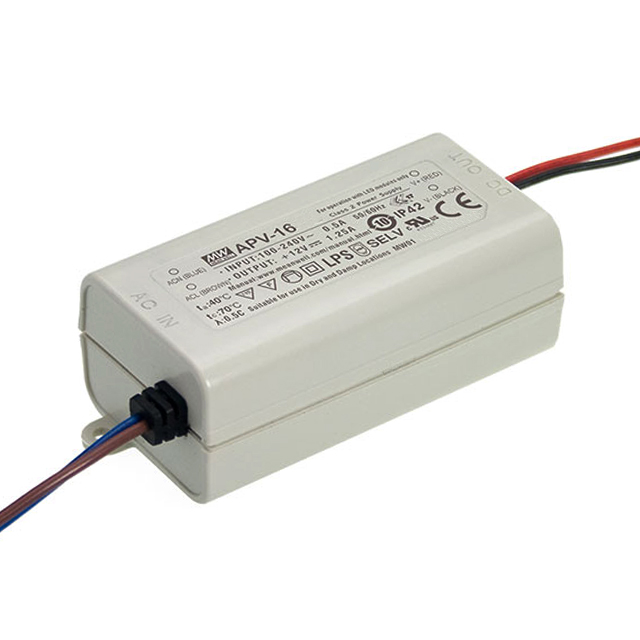

APV-16-24

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 670MA

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CV AC/DC 24V 670MA

Technical Specifications

Parameters and characteristics commom to parts in this series

LED DRIVER CV AC/DC 24V 670MA

Part	Topology	Approval Agency	Voltage - Input (Min) [Min]	Ratings	Features	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Termination Style	Power (Watts)	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Voltage - Output	Voltage - Isolation	Type	Mounting Type	Efficiency
MEAN WELL USA Inc. APV-16E-24	AC DC Converter	CE, ENEC	180 VAC	IP42	OCP, OVP, SCP	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	Wire Leads	16 W	1	670 mA	264 VAC	24 V	3750 V	Constant Voltage	Chassis Mount
MEAN WELL USA Inc. APV-16-24	AC DC Converter	CB, CCC, CE, cURus, ENEC	90 VAC	IP42	OCP, OVP, SCP	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	Wire Leads	16 W	1	670 mA	264 VAC	24 V	3750 V	Constant Voltage	Chassis Mount	83 %
MEAN WELL USA Inc. APV-16-15	AC DC Converter	CB, CCC, CE, cURus, ENEC	90 VAC	IP42	OCP, OVP, SCP	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	Wire Leads	15 W	1	1 A	264 VAC	15 VDC	3750 V	Constant Voltage	Chassis Mount	81 %
MEAN WELL USA Inc. APV-16E-5	AC DC Converter	CE, ENEC	180 VAC	IP42	OCP, OVP, SCP	70 °C	-30 ░C	29 mm	40 mm	1.57 "	1.14 "	3.03 in	77 mm	Wire Leads	13 W	1	2.6 A	264 VAC	5 V	3750 V	Constant Voltage	Chassis Mount	75 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

670mA 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
