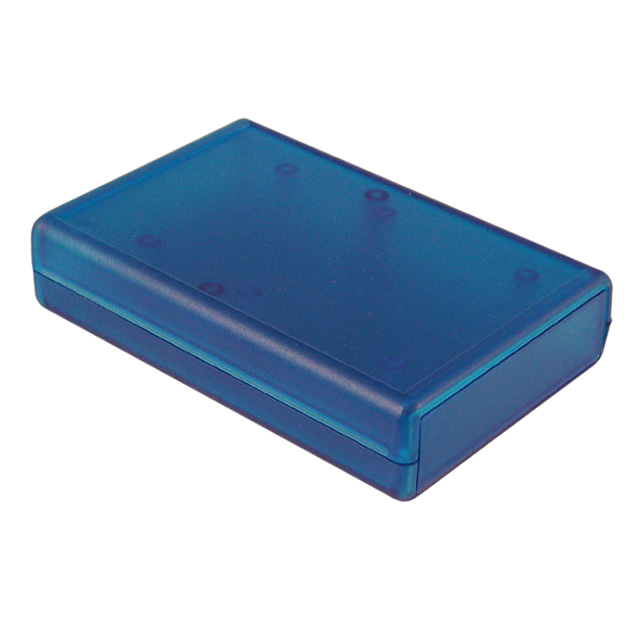

1593NTBU

Active

Hammond Manufacturing

BOX PLAS TRN BLU 4.38"L X 2.95"W

Deep-Dive with AI

Search across all available documentation for this part.

1593NTBU

Active

Hammond Manufacturing

BOX PLAS TRN BLU 4.38"L X 2.95"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1593NTBU

Area (L x W)	12.9 in²
Area (L x W)	83 cm²
Color	Translucent - Blue
Container Type	Box
Features	PCB Supports
Height [z]	0.992 in
Height [z]	25.2 mm
Material	ABS
Material Flammability Rating	UL94 HB
Size / Dimension [x]	111.25 mm
Size / Dimension [x]	4.38 in
Size / Dimension [y]	75 mm
Size / Dimension [y]	2.953 in
Weight	0.15 lbs
Weight	68.04 g

1593 Series

...

Part	Design	Thickness	Thickness	Ratings	Material Flammability Rating	Height [z]	Height [z]	Container Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Material	Color	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Area (L x W)	Area (L x W)	Features	Height	Platform	Area (L x W)
Hammond Manufacturing 1593XALBK	Split Sides and End Panel(s)	2.54 mm	0.1 in	IP54	UL94 HB	27.94 mm	1.1 in	Box	140.21 mm	5.52 "	2.61 "	66.29 mm	ABS	Black
Hammond Manufacturing 1593SALGY	Split Sides and End Panel(s)	2.54 mm	0.1 in	IP54	UL94 HB	21.08 mm	0.83 "	Box		91.95 mm	66.55 mm		ABS	Gray	2.62 "	3.62 in
Hammond Manufacturing 1593DGY					UL94 HB	25.81 mm	1.016 in	Box		114 mm	35.71 mm		ABS	Gray	1.406 in	4.488 in	0.1 lb	45.36 g	40.7 cm²	6.31 in²	PCB Supports
Hammond Manufacturing 1593PTBU	Cover End Panel Hand Held				UL94 HB		1.098 in	Box		92 mm	66.5 mm		ABS	Translucent - Blue	2.618 in	3.622 "	0.13 lbs	58.97 g				27.89 mm
Hammond Manufacturing 1593XBK					UL94 HB			Box		140.23 mm	66.22 mm		ABS	Black	2.607 in	5.521 in					PCB Supports
Hammond Manufacturing 1593PALBK	Split Sides and End Panel(s)	2.54 mm	0.1 in	IP54	UL94 HB	27.94 mm	1.1 in	Box		91.95 mm	66.55 mm		ABS	Black	2.62 "	3.62 in
Hammond Manufacturing 1593TGY	Cover End Panel Hand Held				UL94 HB	21.01 mm	0.827 in	Box		111.99 mm	66.5 mm		ABS	Gray	2.618 in	4.409 "	0.131 lb	59.42 g	74 cm²	11.5 in²
Hammond Manufacturing 1593HAMDOGTBU					UL94 HB	30 mm	1.181 in	Case		95.31 mm	77.31 mm		Plastic ABS	Translucent - Blue	3.044 "	3.752 in			74 cm²	11.5 in²	PCB Supports		BeagleBone
Hammond Manufacturing 1593NTBU					UL94 HB	25.2 mm	0.992 in	Box		111.25 mm	75 mm		ABS	Translucent - Blue	2.953 in	4.38 in	0.15 lbs	68.04 g	12.9 in²		PCB Supports			83 cm²
Hammond Manufacturing 1593ARALGY	Split Sides and End Panel(s)	1.78 mm	0.07 in	IP54	UL94 HB	26.92 mm	1.06 in	Box		75.95 mm	73.91 mm		ABS	Gray	2.91 "	2.99 in			56.1 cm˛	8.7 in˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 8.44
		5	$ 7.21
		10	$ 6.74
		25	$ 6.16
		50	$ 5.76
		100	$ 5.38
		250	$ 4.92
		500	$ 4.85

Description

General part information

1593 Series

Box ABS Translucent - Blue Hand Held, Split Sides and End Panel(s) 4.380" L x 2.953" W (111.25mm x 75.00mm) X 0.992" (25.20mm)

Documents

Technical documentation and resources

No documents available
