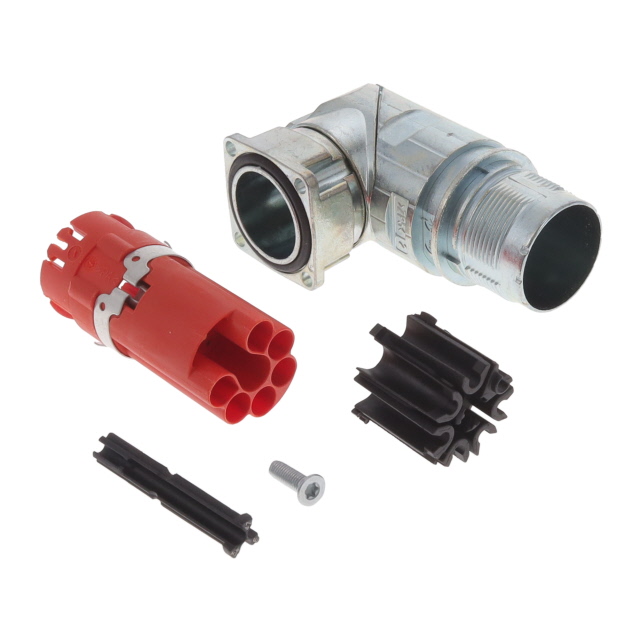

Specification	HGC208N00003200000

Connector Type	Receptacle Housing
Contact Shape	Circular
Fastening Type	Push-Twist
Features	Rotatable, Backshell
Housing Color	Silver
Ingress Protection Description	Dust Tight, Waterproof, Water Resistant
Ingress Protection IP Rating	IP67, IP66
Insert Material	Polyamide, Nylon, Polybutylene Terephthalate, PA, PBT
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Panel Mount, Right Angle
Note	Contacts Not Included
Number of Positions	10
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	PE, Power
Shell Finish	Nickel
Shell Material	Zinc Die Cast, Brass
Shell Size - Insert	M23-10
Shielding	Shielded
Type	For Male Pins

HGC20 Series

Part	Connector Type	Mounting Feature	Orientation	Position Types	Number of Positions	Fastening Type	Features	Material Flammability Rating	Ingress Protection Description	Ingress Protection IP Rating	Shell Size - Insert	Type	Contact Shape	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Housing Color	Shell Material	Note	Shell Finish	Insert Material	Mounting Type
TE Intercontec HGC208N00003200000	Receptacle Housing	Flange	Keyed	PE Power	10	Push-Twist	Backshell Rotatable	UL94 V-0	Dust Tight Water Resistant Waterproof	IP66 IP67	M23-10	For Male Pins	Circular	Shielded	-20 °C	130 °C	Silver	Brass Zinc Die Cast	Contacts Not Included	Nickel	Nylon PA PBT Polyamide Polybutylene Terephthalate	Panel Mount Right Angle
