DSI30-08A

Active

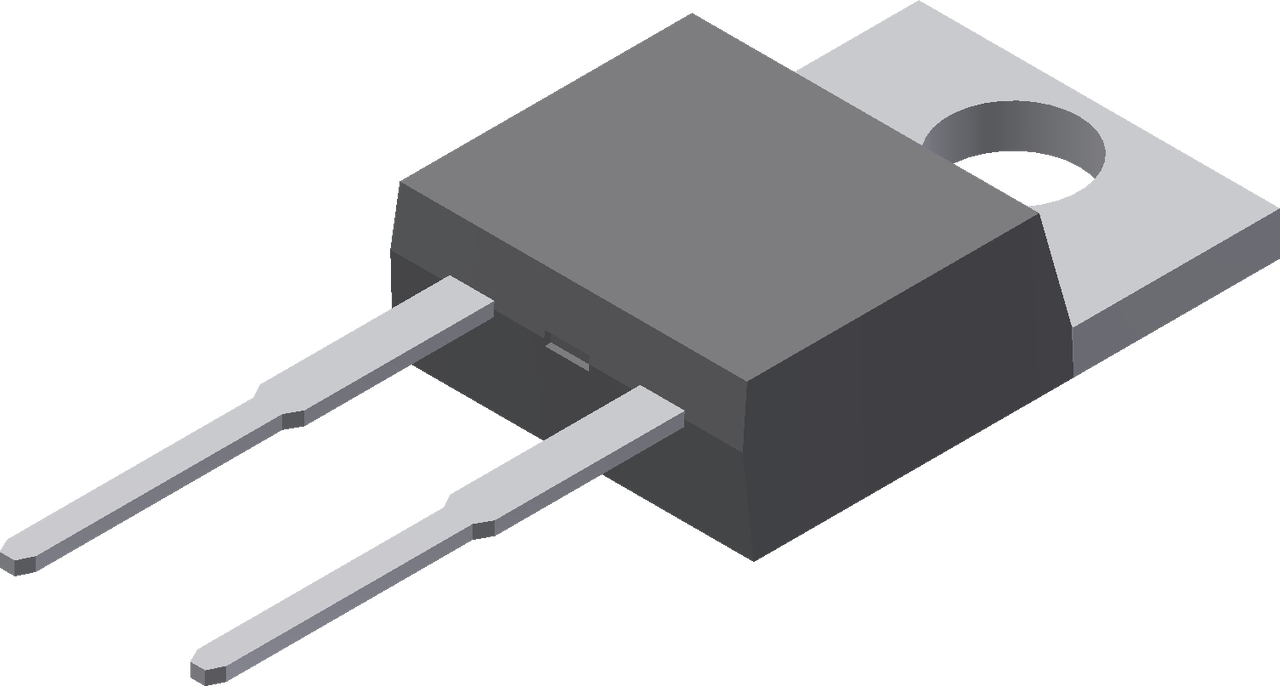

POWER DIODE DISCRETES-RECTIFIER TO-220AC

Active

POWER DIODE DISCRETES-RECTIFIER TO-220AC

Description

General part information

The discrete Standard Diode series comes with a broad variety of packages and breakdown voltages up to 1800V.

Parameters and characteristics for this part

Specification	DSI30-08A

Capacitance	10 pF
Current - Average Rectified (Io)	30 A
Current - Reverse Leakage	40 µA
Mounting Type	Through Hole
Operating Temperature - Junction (Max)	175 °C
Operating Temperature - Junction (Min)	-40 °C
Package / Case	TO-220-2
Package Name	TO-220AC
Speed	Standard Recovery
Speed - Fast Recovery (Minimum)	200 mA, 500 ns
Speed - Recovery Current	200 mA, 200 mA
Speed - Recovery Time	500 ns
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	800 V
Voltage - Forward (Vf) (Max)	1.29 V, 1.29 V

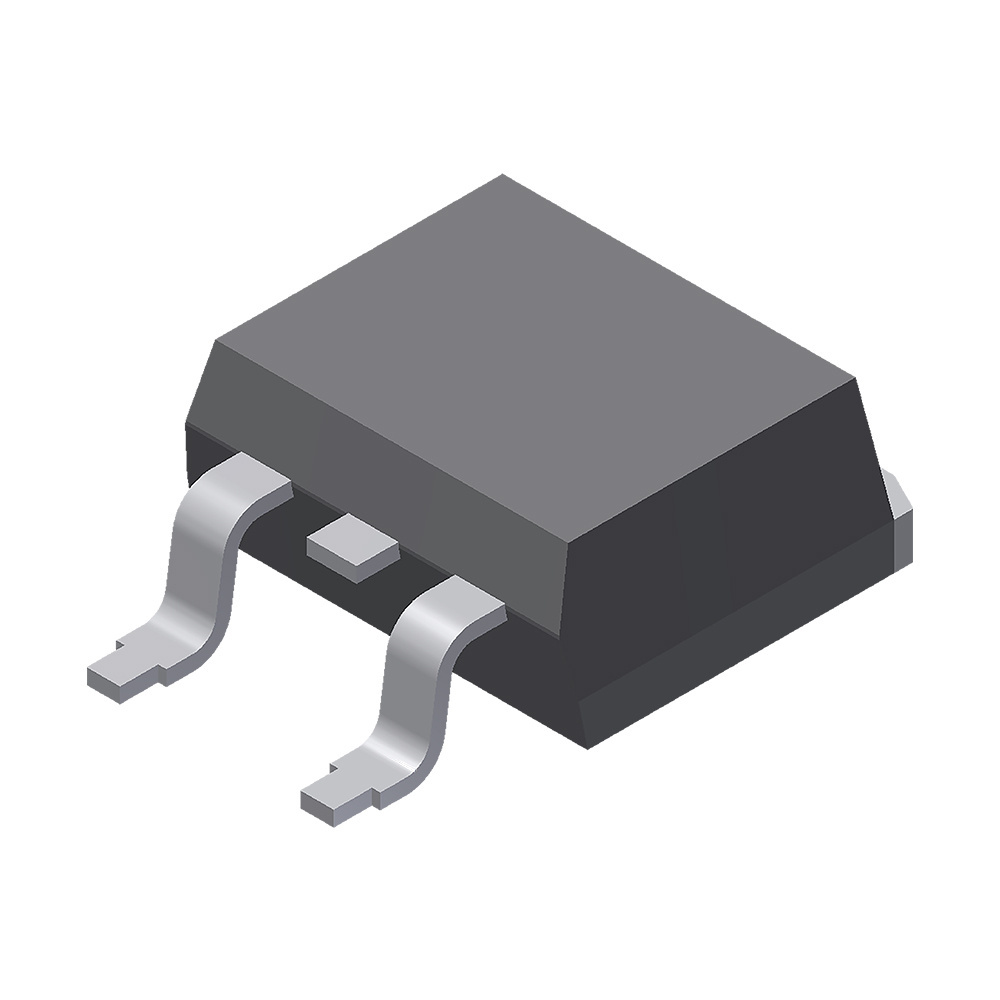

Power Diode Discretes-Rectifier TO-263D2

Part	Voltage - Forward (Vf) (Max)	Technology	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Mounting Type	Speed - Fast Recovery (Minimum)	Speed	Speed - Recovery Current	Speed - Recovery Time	Current - Reverse Leakage	Package Name	Current - Average Rectified (Io)	Voltage - DC Reverse (Vr) (Max)	Package / Case	Capacitance
LITTELFUSE DSI30-12AC	1.45 V	Standard	150 °C	-55 °C	Through Hole	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	50 µA	ISOPLUS220™	30 A	1200 V	ISOPLUS220™
LITTELFUSE DSI30-12A	1.29 V 1.29 V	Standard	175 °C	-40 °C	Through Hole	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	40 µA	TO-220AC	30 A	1200 V	TO-220-2	10 pF
LITTELFUSE DSI30-08AS-TRL	1.29 V 1.29 V	Standard	175 °C	-40 °C	Surface Mount	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	40 µA	TO-263AA	30 A	800 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	10 pF
LITTELFUSE DSI30-08A	1.29 V 1.29 V	Standard	175 °C	-40 °C	Through Hole	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	40 µA	TO-220AC	30 A	800 V	TO-220-2	10 pF
LITTELFUSE DSI30-16AS-TRL	1.29 V 1.29 V	Standard	175 °C	-40 °C	Surface Mount	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	40 µA	TO-263AA	30 A	1600 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	10 pF
LITTELFUSE DSI30-16AS-TUB	1.29 V 1.29 V	Standard	175 °C	-40 °C	Surface Mount	200 mA 500 ns	Standard Recovery	200 mA 200 mA	500 ns	40 µA	TO-263AA	30 A	1600 V	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	10 pF
