50M050080H008

Active

Essentra Access Solutions

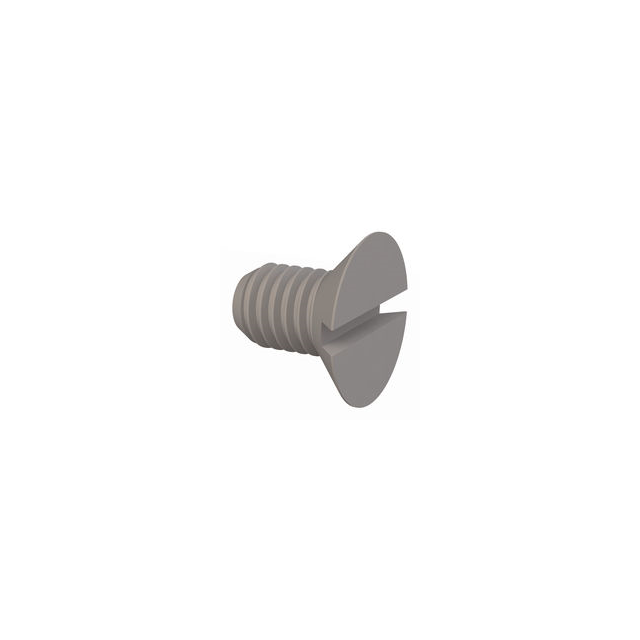

90 SLOTTED CSK SCREW, M5 X .8 TH

Search across all available documentation for this part.

Active

Essentra Access Solutions

90 SLOTTED CSK SCREW, M5 X .8 TH

Technical Specifications

Parameters and characteristics for this part

...

Part	Length - Overall [x]	Length - Overall [x]	Head Diameter [diameter]	Head Diameter [diameter]	Material	Screw Head Type	Type	Drive Type	Length - Below Head [x]	Length - Below Head [x]	Thread Size	Head Diameter [diameter]	Head Height [z]	Head Height [z]	Head Height	Head Height	Length - Overall	Length - Below Head [custom]	Length - Below Head [custom]	Length - Overall
Essentra Access Solutions 50M050080I040	1.681 in	42.7 mm	0.409 "	10.4 mm	Nylon	Flat Head	Machine Screw	Phillips	40 mm	1.575 "	M5x0.8
Essentra Access Solutions 50M050080N025			9.5 mm	0.375 "	Nylon	Pan Head	Machine Screw	Slotted	25 mm	0.984 "	M5x0.8	0.374 "
Essentra Access Solutions 50M050080G025	1.106 in	28.1 mm			Nylon	Pan Head	Machine Screw	Phillips	25 mm	0.984 "	M5x0.8		3.1 mm	0.122 "
Essentra Access Solutions 50M050080D010	0.524 in		8.5 mm		Nylon	Cheese Head	Bolt	Slotted	10 mm	0.394 in	M5x0.8	0.335 in			0.13 in	3.3 mm	13.3 mm
Essentra Access Solutions 50M050080G010	0.516 in	13.1 mm			Nylon	Pan Head	Machine Screw	Phillips	10 mm	0.394 in	M5x0.8		3.1 mm	0.122 "
Essentra Access Solutions 50M050080H008	0.421 in	10.7 mm	0.409 "	10.4 mm	Nylon	Flat Head	Machine Screw	Slotted			M5x0.8							8 mm	0.315 in
Essentra Access Solutions 50M050080I025	1.091 in	27.7 mm	0.409 "	10.4 mm	Nylon	Flat Head	Machine Screw	Phillips	25 mm	0.984 "	M5x0.8
Essentra Access Solutions 50M050080P008			9.5 mm	0.375 "	Nylon	Pan Head	Machine Screw	Phillips			M5x0.8	0.374 "					11.7 mm	8 mm	0.315 in	0.461 in
Essentra Access Solutions 50M050080I030	1.287 in	32.7 mm	0.409 "	10.4 mm	Nylon	Flat Head	Machine Screw	Phillips			M5x0.8
Essentra Access Solutions 50M050080K035					Nylon	Hex Head	Bolt	Slotted			M5x0.8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

M5x0.8 Flat Head Machine Screw Slotted Drive Nylon
