50M040070H008

Active

Essentra Access Solutions

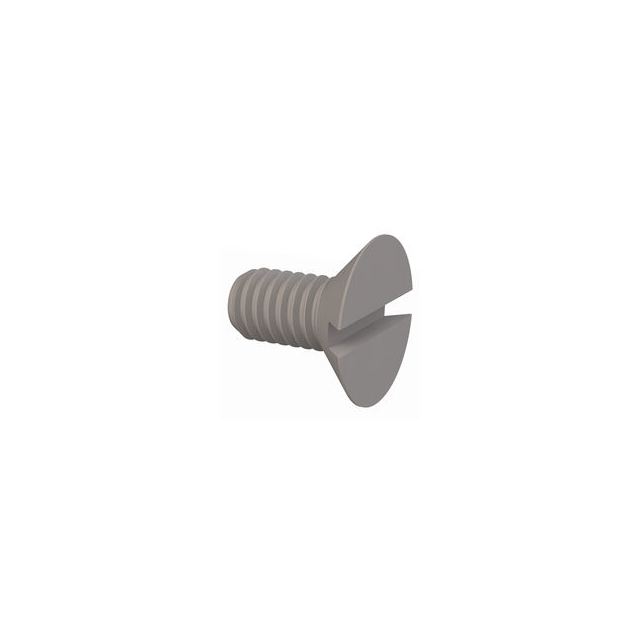

90 SLOTTED CSK SCREW, M4 X .7 TH

Search across all available documentation for this part.

Active

Essentra Access Solutions

90 SLOTTED CSK SCREW, M4 X .7 TH

Technical Specifications

Parameters and characteristics for this part

...

Part	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Length - Below Head [x]	Length - Below Head [x]	Material	Thread Size	Screw Head Type	Length - Overall [x]	Length - Overall [x]	Type	Head Height	Head Height	Length - Overall	Length - Overall	Length - Below Head	Length - Below Head	Head Height [z]	Head Height [z]
Essentra Access Solutions 50M040070I006	9.4 mm	0.37 in	Phillips	0.13 in	3.3 mm	Nylon	M4x0.7	Flat Head	6 mm	0.236 in	Machine Screw
Essentra Access Solutions 50M040070T035	9.7 mm	0.382 in	Slotted			Nylon	M4x0.7	Knob	42.1 mm	1.657 in	Thumb Screw	7.1 mm	0.28 in
Essentra Access Solutions 50M040070K010	7 mm	0.276 in	Slotted	0.394 in	10 mm	Nylon	M4x0.7	Hex Head			Bolt			13 mm	0.512 "
Essentra Access Solutions 50M040070P006			Phillips			Nylon	M4x0.7	Pan Head	8.9 mm	0.35 in	Machine Screw	2.9 mm	0.114 in			6 mm	0.236 in
Essentra Access Solutions 50M040070H008	9.4 mm	0.37 in	Slotted	0.209 in	5.3 mm	Nylon	M4x0.7	Flat Head	8 mm	0.315 in	Machine Screw
Essentra Access Solutions 50M040070G012			Phillips	0.472 in	12 mm	Nylon	M4x0.7	Pan Head	15.1 mm	0.594 in	Machine Screw							3.1 mm	0.122 "
Essentra Access Solutions 50M040070R040	2 mm	0.079 in	Slotted	1.575 "	40 mm	Nylon	M4x0.7		40.76 mm	1.605 in	Set Screw
Essentra Access Solutions 50M040070H012	9.4 mm	0.37 in	Slotted			Nylon	M4x0.7	Flat Head	12 mm	0.472 in	Machine Screw					9.3 mm	0.366 in
Essentra Access Solutions 50M040070M025	9.4 mm	0.37 in	Phillips	0.878 in	22.3 mm	Nylon	M4x0.7	Oval Head	26 mm	1.024 in	Machine Screw	3.7 mm	0.146 in
Essentra Access Solutions 50M040070G020			Phillips			Nylon	M4x0.7	Pan Head	23.1 mm	0.909 in	Machine Screw					20 mm	0.787 in	3.1 mm	0.122 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

M4x0.7 Flat Head Machine Screw Slotted Drive Nylon

Technical documentation and resources

No documents available
