896-010-520-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 10POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

896-010-520-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 10POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	896-010-520-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole
Number of Positions	10
Number of Positions/Bay/Row [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

896-010 Series

...

Part	Material - Insulation	Read Out	Termination	Contact Finish	Termination Rows	Pitch [x]	Pitch [x]	Contact Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Color	Mounting Type	Contact Material	Number of Rows	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Gender	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Number of Positions/Bay/Row [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature
EDAC Inc. 896-010-500-112	Polyphenylene Sulfide (PPS)	Single	Solder Eyelet(s)	Gold	1	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole	Copper Alloy	1	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	10	125 °C	-40 °C
EDAC Inc. 896-010-526-604	Polyphenylene Sulfide (PPS)	Single	Solder	Gold	1	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole	Copper Alloy	1	3.96 mm	Top Mount Opening Unthreaded	0.156 in	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	10	125 °C	-40 °C
EDAC Inc. 896-010-526-212	Polyphenylene Sulfide (PPS)	Dual	Solder	Gold	2	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole	Copper Alloy	2	3.25 mm	Flush Mount Side Opening Unthreaded	0.128 "	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	5	125 °C	-40 °C
EDAC Inc. 896-010-522-802	Polyphenylene Sulfide (PPS)	Dual	Solder	Gold	2	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole	Copper Alloy	2				Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	5	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 896-010-500-201	Polyphenylene Sulfide (PPS)	Dual	Solder Eyelet(s)	Gold	2	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole	Copper Alloy	2				Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	5	125 °C	-40 °C
EDAC Inc. 896-010-500-802	Polyphenylene Sulfide (PPS)	Dual	Solder Eyelet(s)	Gold	2	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole	Copper Alloy	2				Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	5	125 °C	-40 °C	3.25 mm	0.128 in
EDAC Inc. 896-010-559-207	Polyphenylene Sulfide (PPS)	Dual	Solder	Gold	2	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole Right Angle	Copper Alloy	2		Flush Mount M3 Threaded Insert Top Opening		Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	5	125 °C	-40 °C
EDAC Inc. 896-010-522-208	Polyphenylene Sulfide (PPS)	Dual	Solder	Gold	2	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole	Copper Alloy	2		4-40 Flush Mount Threaded Insert Top Opening		Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	5	125 °C	-40 °C
EDAC Inc. 896-010-500-204	Polyphenylene Sulfide (PPS)	Dual	Solder Eyelet(s)	Gold	2	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole	Copper Alloy	2	3.96 mm	Flush Mount Top Opening Unthreaded	0.156 in	Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	5	125 °C	-40 °C
EDAC Inc. 896-010-520-207	Polyphenylene Sulfide (PPS)	Dual	Solder	Gold	2	0.125 in	3.18 mm	Cantilever	10	10 Áin	0.25 Ám	Black	Through Hole	Copper Alloy	2		Flush Mount M3 Threaded Insert Top Opening		Female	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	5	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 49.09

Description

General part information

896-010 Series

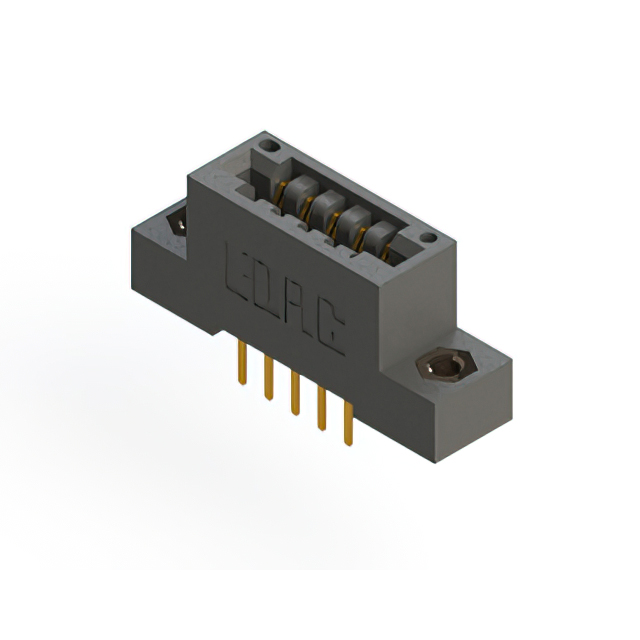

10 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
