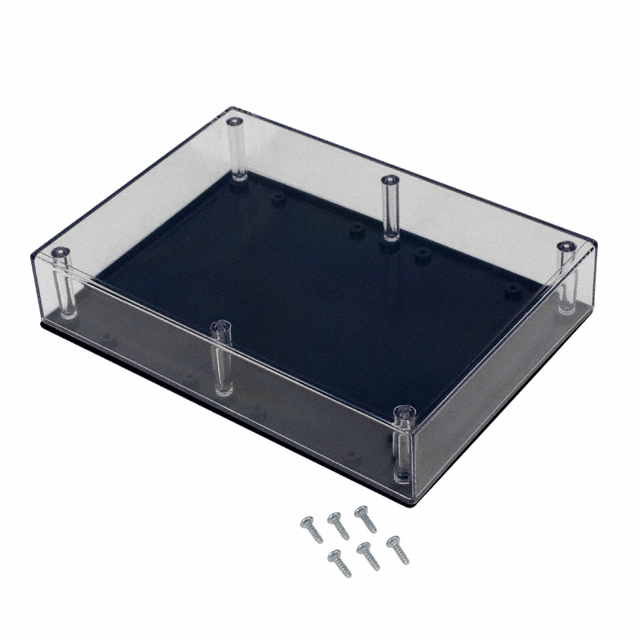

072C,BK
ActiveSerpac
BOX PLAS BLK/CLR 6.88"L X 4.88"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
072C,BK
ActiveSerpac
BOX PLAS BLK/CLR 6.88"L X 4.88"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 072C,BK |
|---|---|
| Area (L x W) | 33.6 in² |
| Area (L x W) | 217 cm² |
| Color | Black, Clear Cover/Door |
| Container Type | Box |
| Features | PCB Supports |
| Height [z] | 35.56 mm |
| Height [z] | 1.4 in |
| Material | Plastic, Polycarbonate |
| Ratings | IP40, NEMA 1 |
| Size / Dimension [x] | 174.75 mm |
| Size / Dimension [x] | 6.88 in |
| Size / Dimension [y] | 123.95 mm |
| Size / Dimension [y] | 4.88 in |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.57 | |
| 5 | $ 8.50 | |||
| 10 | $ 8.14 | |||
| 25 | $ 7.88 | |||
| 50 | $ 7.77 | |||
| 100 | $ 7.71 | |||
| 250 | $ 7.66 | |||
| 500 | $ 7.64 | |||
| 1000 | $ 7.63 | |||
Description
General part information
072C Series
Box Plastic, Polycarbonate Black, Clear Cover/Door 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.400" (35.56mm)
