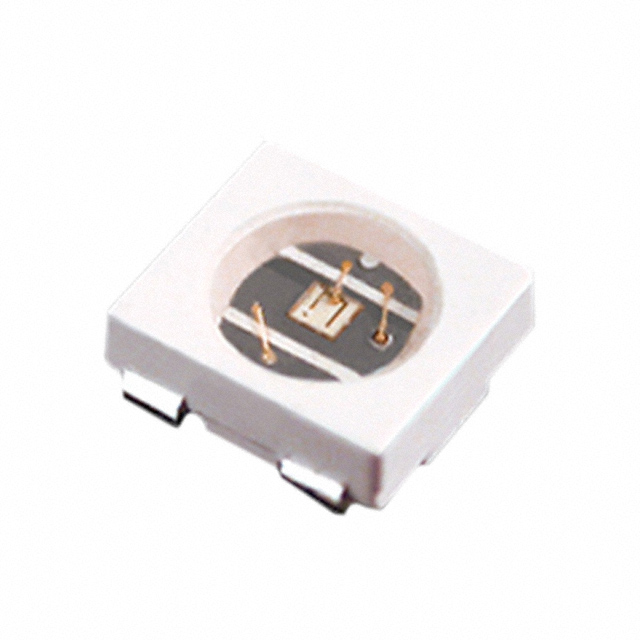

XZMOLA92S-4
SunLED
LED RED CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMOLA92S-4
SunLED
LED RED CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMOLA92S-4 |
|---|---|
| Color | Red |
| Configuration | Standard |
| Current - Test | 150 mA |
| Height (Max) [Max] | 1.15 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 2.6 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 3090 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, J-Lead |
| Size / Dimension [x] | 3.5 mm |
| Size / Dimension [y] | 3.15 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.5 V |
| Wavelength - Dominant | 625 nm |
| Wavelength - Peak [custom] | 640 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.97 | |
| Digi-Reel® | 1 | $ 0.97 | ||
| Tape & Reel (TR) | 2000 | $ 0.31 | ||
| 6000 | $ 0.29 | |||
| 10000 | $ 0.29 | |||
Description
General part information
XZMOLA92 Series
Red 625nm LED Indication - Discrete 2.5V 4-SMD, J-Lead
