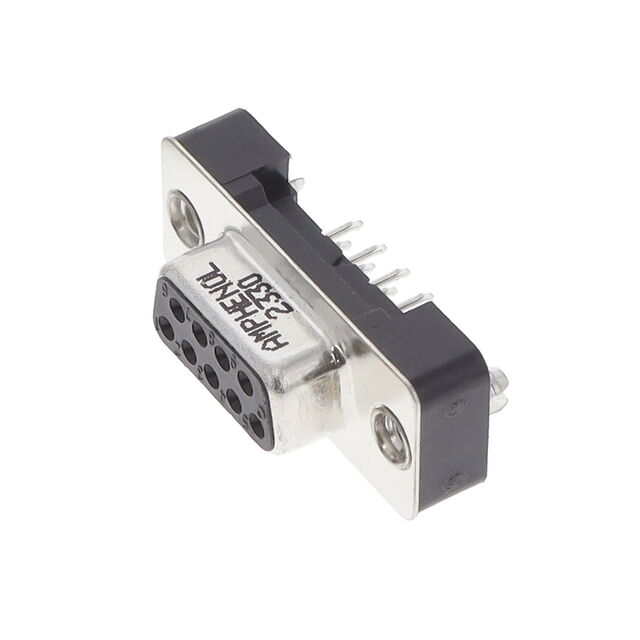

L177TSEH09SOL2RM5

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS VERT SLDR

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS VERT SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	L177TSEH09SOL2RM5

Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Form	Stamped
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Termination	Solder
Voltage Rating	600 V

Part	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Contact Finish	Material Flammability Rating	Contact Material	Current Rating (Amps)	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Number of Positions	Connector Type	Mounting Type	Contact Form	Dielectric Material	Voltage Rating	Termination
Amphenol ICC (Commercial Products) L177TSEH09SOL2RM5	Signal	15 µin	0.38 µm	4-40 Board Side	Gold	UL94 V-0	Copper Alloy	5 A	2	-55 °C	125 °C	D-Sub	DE E	1	9	Receptacle Female Sockets	Through Hole	Stamped	Thermoplastic Glass Filled	600 V	Solder
Amphenol ICC (Commercial Products) L177TSEH09SOL2	Signal	15 µin	0.38 µm	4-40 Board Side	Gold	UL94 V-0	Copper Alloy	5 A	2	-55 °C	125 °C	D-Sub	DE E	1	9	Receptacle Female Sockets	Through Hole	Stamped	Thermoplastic Glass Filled	600 V	Solder
Amphenol ICC (Commercial Products) L177TSEH09SOL2RM8	Signal	15 µin	0.38 µm	Female Screwlock (4-40) Mating Side	Gold	UL94 V-0	Copper Alloy	5 A	2	-55 °C	125 °C	D-Sub	DE E	1	9	Receptacle Female Sockets	Through Hole	Stamped	Thermoplastic Glass Filled	600 V	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Receptacle, Female Sockets Connector
