IRS-5/10-Q48P-C

Active

Murata Power Solutions Inc.

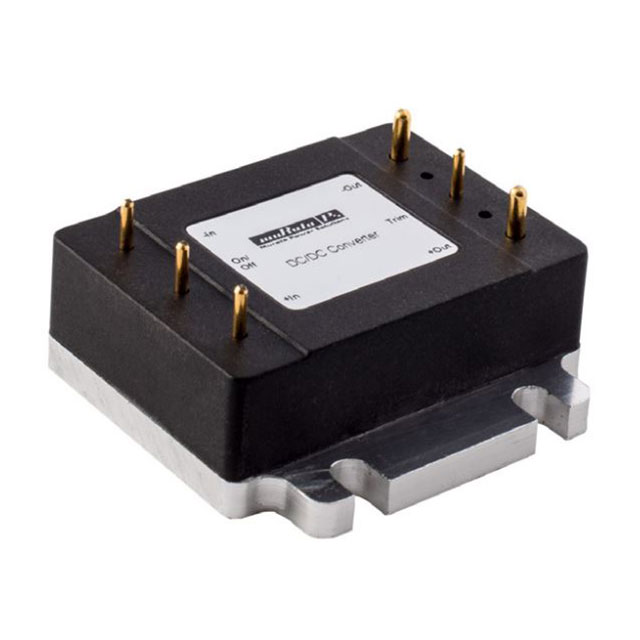

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 4:1, 50 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

IRS-5/10-Q48P-C

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIXTEENTH BRICK, 4:1, 50 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	48	$ 45.85
Newark	Each	25	$ 50.23
		50	$ 48.97
		100	$ 46.46
		250	$ 43.32

Description

General part information

IRS-5 Series

Isolated Module DC DC Converter 1 Output 5V 10A 18V - 75V Input

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

EOL Notices EN

Datasheet

Specification	IRS-5/10-Q48P-C	IRS-5 Series

Applications	Railway, ITE (Commercial)	ITE (Commercial), Railway
Control Features	-	Active High, Enable, Active Low
Current - Output (Max) [Max]	10 A	10 A
Efficiency	91 %	91 %
Features	OVP, UVLO, SCP, OCP, OTP	Remote On/Off, OVP, SCP, OTP, UVLO, OCP
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	1/16 Brick, 9-DIP Module	Sixteenth Brick, 1/16 Brick, 9-DIP Module
Power (Watts)	50 W	50 W
Size / Dimension [x]	1.44 "	1.44 "
Size / Dimension [x]	36.5 mm	36.5 mm
Size / Dimension [y]	1.04 in	1.04 - 1.5 in
Size / Dimension [y]	26.3 mm	26.3 - 38.1 mm
Size / Dimension [z]	0.5 in	0.5 in
Size / Dimension [z]	12.7 mm	12.7 mm
Supplier Device Package	Sixteenth Brick	Sixteenth Brick
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	75 V	36 - 75 V
Voltage - Input (Min) [Min]	18 V	9 - 18 V
Voltage - Output 1	5 V	5 V

Part

Efficiency

Voltage - Input (Min) [Min]

Voltage - Output 1

Size / Dimension [x]

Size / Dimension [y]

Size / Dimension [z]

Size / Dimension [x]

Size / Dimension [z]

Features

Supplier Device Package
