895-027-542-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 27POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-027-542-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 27POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-027-542-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 27 |
| Number of Positions/Bay/Row [custom] | 27 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
895-027 Series
...
| Part | Pitch [x] | Pitch [x] | Read Out | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Material | Material - Insulation | Gender | Number of Positions/Bay/Row [custom] | Number of Positions | Contact Finish | Color | Number of Rows | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Contact Type | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | 1 | Cantilever | Solder | 125 °C | -40 °C | ||
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | 10 Áin | 0.25 Ám | 1 | Cantilever | Wire Wrap | 125 °C | -40 °C | 3.25 mm | 0.128 in | |||
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | 1 | Cantilever | Solder Eyelet(s) | 125 °C | -40 °C | ||
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | 10 Áin | 0.25 Ám | 1 | Cantilever | Solder | 125 °C | -40 °C | |||||
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | 1 | Cantilever | Solder | 125 °C | -40 °C | ||
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 1 | Cantilever | Solder | 125 °C | -40 °C | 3.25 mm | 0.128 in | ||
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | 1 | Cantilever | Solder | 125 °C | -40 °C | ||
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 1 | Cantilever | Wire Wrap | 125 °C | -40 °C | ||||
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | 2.95 mm | Floating Bobbin Top Mount Opening | 0.116 in | 10 Áin | 0.25 Ám | 1 | Cantilever | Wire Wrap | 125 °C | -40 °C | ||
EDAC Inc. | 2.54 mm | 0.1 in | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Polyphenylene Sulfide (PPS) | Female | 27 | 27 | Gold | Black | 1 | 3.96 mm | Top Mount Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | 1 | Cantilever | Solder Eyelet(s) | 125 °C | -40 °C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-027 Series

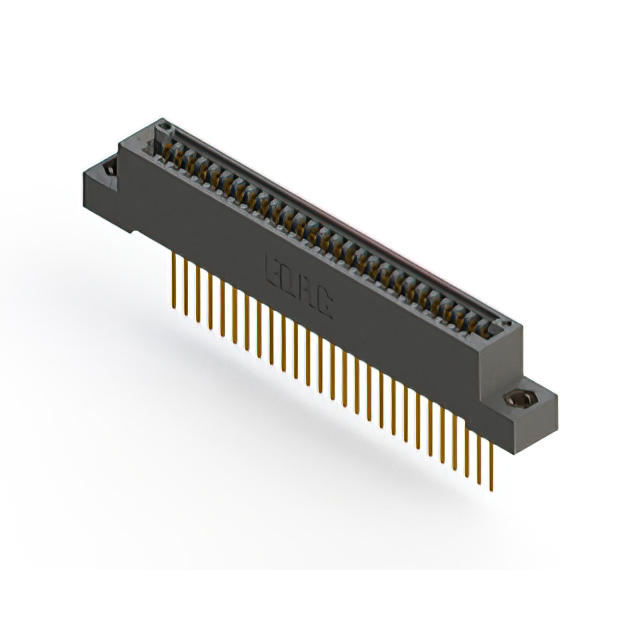

27 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
