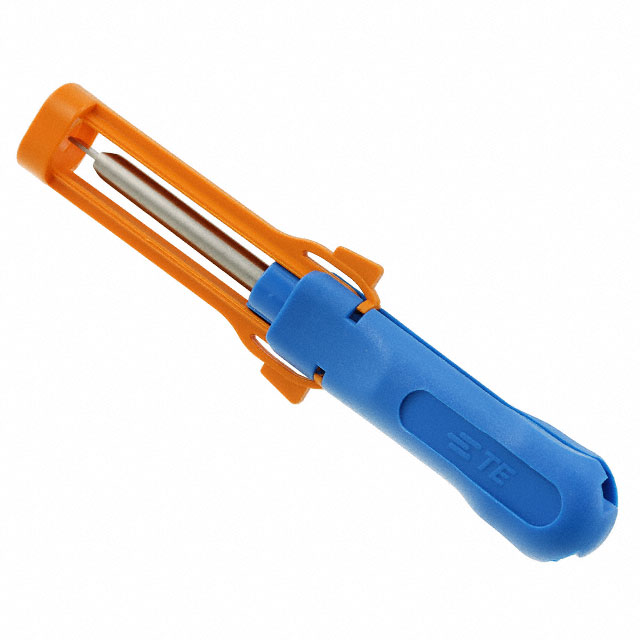

9-1579018-9

Active

TE Application Tooling

EXTRACTION TOOL

Search across all available documentation for this part.

Active

TE Application Tooling

EXTRACTION TOOL

Technical Specifications

Parameters and characteristics for this part

Specification	9-1579018-9

For Use With/Related Products	Photovoltaic (Solar Panel) Contacts
For Use With/Related Products [Max]	14 AWG
For Use With/Related Products [Min]	10 AWG
Tool Type	Extraction Tool

Part	Tool Type	For Use With/Related Products [Max]	For Use With/Related Products	For Use With/Related Products [Min]
TE Application Tooling 9-1579018-9	Extraction Tool	14 AWG	Photovoltaic (Solar Panel) Contacts	10 AWG
TE Application Tooling 8-1579018-5	Extraction Tool		Rectangular Connectors
TE Application Tooling 8-1579018-6	Insertion Tool		Rectangular Contacts
TE Application Tooling 5-1579018-1	Extraction Tool		Rectangular Contacts
TE Application Tooling 5-1579018-6	Insertion Tool		Rectangular Contacts 17-20 AWG
TE Application Tooling 4-1579018-5	Extraction Tool		Rectangular Contacts
TE Application Tooling 3-1579018-8	Extraction Tool		Contacts
TE Application Tooling 1-1579018-0	Extraction Tool		Circular Contacts
TE Application Tooling 5-1579018-5	Insertion Tool		Backplane Connectors
TE Application Tooling 6-1579018-3	Insertion Tool		Rectangular Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Extraction Tool For Photovoltaic (Solar Panel) Contacts, 10-14 AWG
