ESW-112-37-S-S

Active

Samtec Inc.

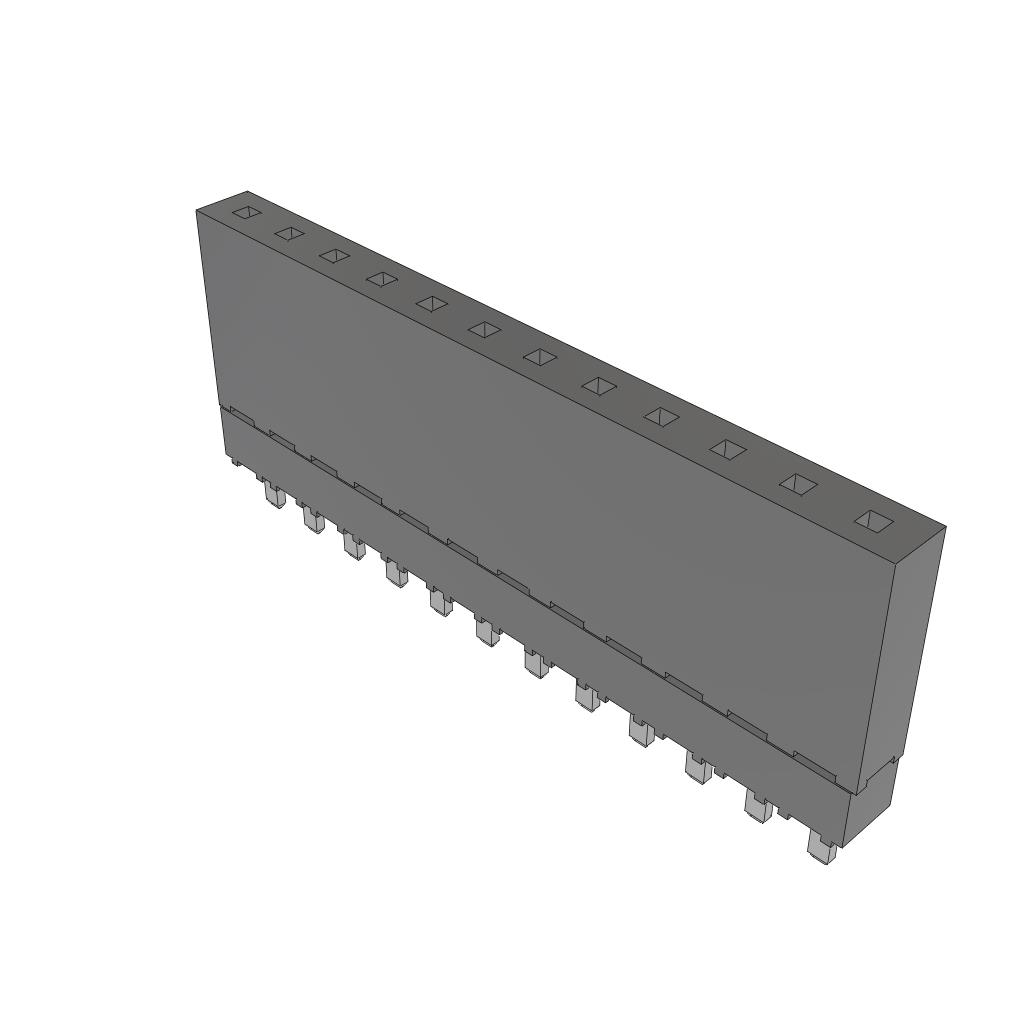

CONN SOCKET 12POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsESW Datasheet ESW Series Other Related Documents 01 +1

ESW-112-37-S-S

Active

Samtec Inc.

CONN SOCKET 12POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsESW Datasheet ESW Series Other Related Documents 01 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESW-112-37-S-S

Connector Type	Elevated Socket
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.435 in
Insulation Height	11.05 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder
Voltage Rating	550 VAC

ESW-112 Series

Part	Contact Finish - Mating	Mounting Type	Contact Finish - Post	Number of Positions	Contact Material	Number of Positions Loaded	Number of Rows	Connector Type	Insulation Height	Insulation Height	Voltage Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Insulation Material	Termination	Current Rating (Amps)	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Shape	Contact Length - Post	Contact Length - Post	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post
Samtec Inc. ESW-112-69-L-D	Gold	Through Hole	Tin	24	Phosphor Bronze	All	2	Elevated Socket	18.67 mm	0.735 "	550 VAC	Push-Pull	10 çin	0.25 çm	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Solder	5.2 A	Black	-55 °C	125 °C	Forked	UL94 V-0	2.54 mm	0.1 in	Square	0.18 in	4.57 mm
Samtec Inc. ESW-112-12-T-D		Through Hole	Tin	24	Phosphor Bronze	All	2	Elevated Socket	11.05 mm	0.435 in	550 VAC	Push-Pull			0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Solder	5.2 A	Black	-55 °C	105 ░C	Forked	UL94 V-0	2.54 mm	0.1 in	Square	0.09 "	2.29 mm
Samtec Inc. ESW-112-23-T-S		Through Hole	Tin	12	Phosphor Bronze	All	1	Elevated Socket	13.6 mm	0.535 in	550 VAC	Push-Pull			0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Solder	5.2 A	Black	-55 °C	105 ░C	Forked	UL94 V-0			Square	0.19 in	4.83 mm
Samtec Inc. ESW-112-13-H-D-24	Gold	Through Hole	Gold	24	Phosphor Bronze		2	Elevated Socket	11.05 mm	0.435 in	550 VAC	Push-Pull	30 Áin	0.76 Ám	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Solder	5.2 A	Black	-55 °C	125 °C	Forked	UL94 V-0	2.54 mm	0.1 in	Square			0.29 "	7.37 mm	23	3 µin	0.076 µm
Samtec Inc. ESW-112-37-S-S	Gold	Through Hole	Tin	12	Phosphor Bronze	All	1	Elevated Socket	11.05 mm	0.435 in	550 VAC	Push-Pull	30 Áin	0.76 Ám	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Solder	5.2 A	Black	-55 °C	125 °C	Forked	UL94 V-0			Square	0.09 "	2.29 mm
Samtec Inc. ESW-112-69-G-S	Gold	Through Hole	Gold	12	Phosphor Bronze	All	1	Elevated Socket	18.67 mm	0.735 "	550 VAC	Push-Pull	20 µin	0.51 µm	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Solder	5.2 A	Black	-55 °C	125 °C	Forked	UL94 V-0			Square	0.18 in	4.57 mm				3 µin	0.076 µm
Samtec Inc. ESW-112-14-G-S	Gold	Through Hole	Gold	12	Phosphor Bronze	All	1	Elevated Socket	11.05 mm	0.435 in	550 VAC	Push-Pull	20 µin	0.51 µm	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Solder	5.2 A	Black	-55 °C	125 °C	Forked	UL94 V-0			Square		0.48 in				3 µin	0.076 µm	12.19 mm
Samtec Inc. ESW-112-12-S-D-LL	Gold	Through Hole	Tin	24	Phosphor Bronze	All	2	Elevated Socket	11.05 mm	0.435 in	550 VAC	Push-Pull	30 Áin	0.76 Ám	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Kinked Pin Solder	5.2 A	Black	-55 °C	125 °C	Forked	UL94 V-0	2.54 mm	0.1 in	Square	0.09 "	2.29 mm
Samtec Inc. ESW-112-44-G-D	Gold	Through Hole	Gold	24	Phosphor Bronze	All	2	Elevated Socket	18.67 mm	0.735 "	550 VAC	Push-Pull	20 µin	0.51 µm	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Solder	5.2 A	Black	-55 °C	125 °C	Forked	UL94 V-0	2.54 mm	0.1 in	Square	0.18 in	4.57 mm				3 µin	0.076 µm
Samtec Inc. ESW-112-12-G-D	Gold	Through Hole	Gold	24	Phosphor Bronze	All	2	Elevated Socket	11.05 mm	0.435 in	550 VAC	Push-Pull	20 µin	0.51 µm	0.1 in	2.54 mm	Liquid Crystal Polymer (LCP)	Solder	5.2 A	Black	-55 °C	125 °C	Forked	UL94 V-0	2.54 mm	0.1 in	Square	0.09 "	2.29 mm				3 µin	0.076 µm
