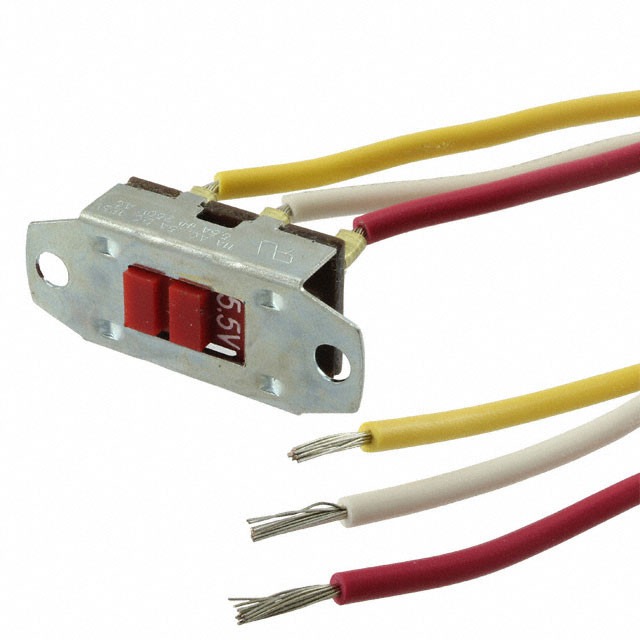

GF-1124-0012

Active

CW Industries

SWITCH SLIDE SPDT 11A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH SLIDE SPDT 11A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Circuit	Contact Timing	Switch Function	Contact Material	Electrical Life	Actuator Length [x]	Switch Travel	Actuator Material	Voltage Rating - AC	Mechanical Life	Voltage Rating - DC	Termination Style	Current Rating (Amps)	Features
CW Industries GF-1124-0012	Screwdriver Slot	104 °C	-10 °C	Silver	SPDT	Not Specified	On-On (Line Voltage Selector)	Copper	6000 Cycles	0.79 mm	4.01 mm	Nylon 6/6 Polyamide (PA66)	125 V	10000 Steps	125 VDC	Wire Leads	11 A 500 mA	5.5V-12V Marking Red Actuator
CW Industries GF-1124-0000	Standard	104 °C	-10 °C	Silver	SPDT	Not Specified	On-On	Copper	6000 Cycles	8.74 mm	4.01 mm	Nylon 6/6 Polyamide (PA66)	125 V	10000 Steps	125 VDC	Solder Lug	11 A 500 mA
CW Industries GF-1124-0020	Standard	104 °C	-10 °C	Silver	SPDT	Not Specified	On-On	Copper	6000 Cycles	8.74 mm	4.01 mm	Nylon 6/6 Polyamide (PA66)	125 V	10000 Steps	125 VDC	PC Pin	11 A 500 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch SPDT Panel Mount
