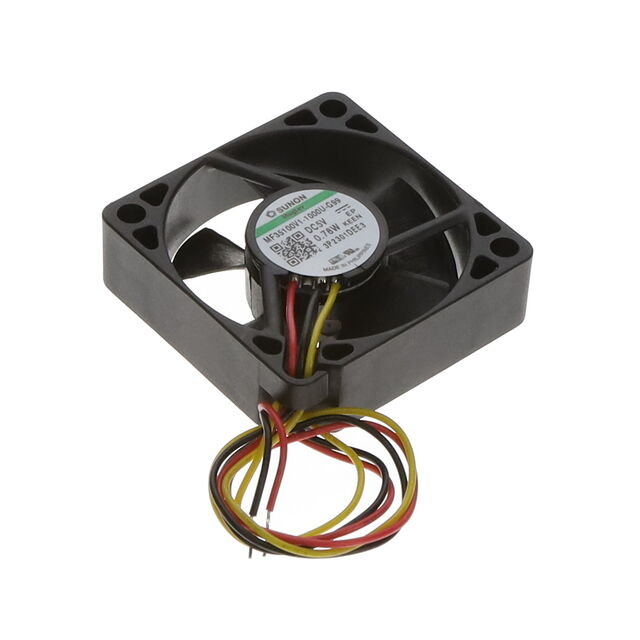

MF35100V1-1000U-G99

Active

Sunon Fans

FAN AXIAL 35X10MM VAPO 5VDC WIRE

Search across all available documentation for this part.

Active

Sunon Fans

FAN AXIAL 35X10MM VAPO 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MF35100V1-1000U-G99

Air Flow	7.2 CFM
Air Flow	0.202 mł/min
Approval Agency	cURus, TUV
Current Rating (Amps)	135 mA
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	28 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	680 mW
RPM	10000 RPM
Size / Dimension [x]	35 mm
Size / Dimension [z]	35 mm
Static Pressure	0.22 in H2O
Static Pressure	55 Pa
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	6 VDC
Voltage Range [Min]	2.5 V
Weight	0.024 lb
Weight	10.89 g
Width [y]	10 mm

FAN AXIAL 35X10MM VAPO 5VDC WIRE

Part	Current Rating (Amps)	Air Flow	Air Flow	Approval Agency	Termination	Voltage Range [Min]	Voltage Range [Max]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated	Noise	Lifetime @ Temp.	Size / Dimension [z]	Size / Dimension [x]	Power (Watts)	Width [y]	Weight	Weight	Static Pressure	Static Pressure	Fan Type	Features	RPM	Material - Blade
Sunon Fans MF35100V1-1000U-G99	135 mA	7.2 CFM	0.202 mł/min	cURus, TUV	3 Wire Leads	2.5 V	6 VDC	70 °C	70 °C	-10 °C	-10 °C	5 V	28 dB	70000 Hrs	35 mm	35 mm	680 mW	10 mm	0.024 lb	10.89 g	0.22 in H2O	55 Pa	Tubeaxial	Auto Restart, Speed Sensor (Tach)	10000 RPM	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 35mm L x 35mm H Vapo-Bearing™ 7.2 CFM (0.202m³/min) 3 Wire Leads
