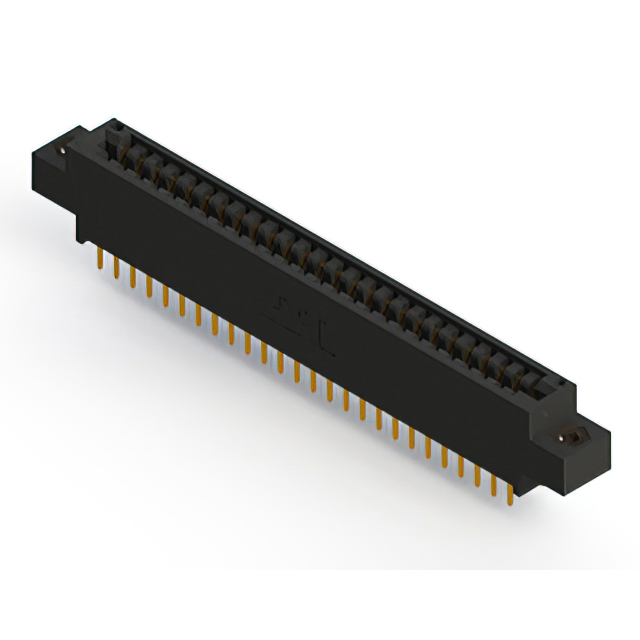

396-052-521-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-052-521-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 52POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-052-521-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 52 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
396-052 Series
...
| Part | Contact Material | Contact Type | Color | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Read Out | Number of Positions | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Material - Insulation | Contact Finish | Termination | Gender | Pitch [x] | Pitch [x] | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Through Hole Right Angle | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Gold | Solder Wire Wrap | Female | 0.125 in | 3.18 mm | 26 | |||||
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Through Hole | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Gold | Solder | Female | 0.125 in | 3.18 mm | 26 | |||||
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Through Hole | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | Polyester Thermoplastic | Gold | Solder | Female | 0.125 in | 3.18 mm | 26 | |||||
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Through Hole | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Polyester Thermoplastic | Gold | Solder | Female | 0.125 in | 3.18 mm | 26 | 3.25 mm | 0.128 in | |||
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Board Edge Straddle Mount | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Solder | Female | 0.125 in | 3.18 mm | 26 | Card Extender | |||||
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Through Hole | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount Side Opening Unthreaded | Polyester Thermoplastic | Gold | Solder | Female | 0.125 in | 3.18 mm | 26 | 3.25 mm | 0.128 " | |||
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Through Hole | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Wire Wrap | Female | 0.125 in | 3.18 mm | 26 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Board Edge Straddle Mount | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | Polyester Thermoplastic | Gold | Solder | Female | 0.125 in | 3.18 mm | 26 | 3.25 mm | 0.128 in | Card Extender | ||
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Through Hole | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyester Thermoplastic | Gold | Solder | Female | 0.125 in | 3.18 mm | 26 | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Copper Alloy | Cantilever | Black | -40 °C | 105 ░C | Board Edge Straddle Mount | Dual | 52 | 2 | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | Polyester Thermoplastic | Gold | Solder Eyelet(s) | Female | 0.125 in | 3.18 mm | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 9.97 | |
Description
General part information
396-052 Series
52 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
