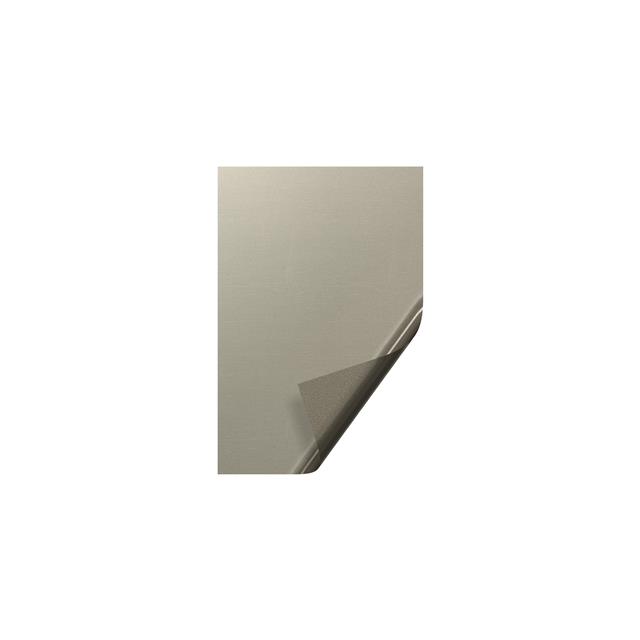

IBQ15-100BB125X125

Active

TDK Corporation

MAGNETIC SHEET, 125 L X 125 W X 0.1 D MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

TDK Corporation

MAGNETIC SHEET, 125 L X 125 W X 0.1 D MM ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF EMI Shielding Sheet IBQ15 Non-Conductive, Double Sided 4.921" (125.00mm) X 4.921" (125.00mm) X 0.007" (0.18mm)

Part	Length	Length	Shape	Width [x]	Width [x]	Operating Temperature [Max]	Operating Temperature [Min]	Thickness - Overall	Thickness - Overall	Adhesive	Type	Thickness - Overall [custom]	Thickness - Overall [custom]
TDK Corporation IBQ15-100BB125X125	4.921 in	125 mm	Square	125 mm	4.921 "	85 °C	-40 °C	0.18 mm	0.007 in	Non-Conductive, Double Sided	Shielding Sheet
TDK Corporation IBQ15-180DD125X125	4.921 in	125 mm	Square	125 mm	4.921 "	85 °C	-40 °C			Non-Conductive, Double Sided	Shielding Sheet	0.004 "	0.1 mm
