796864-3
ActiveTE Connectivity AMP Connectors

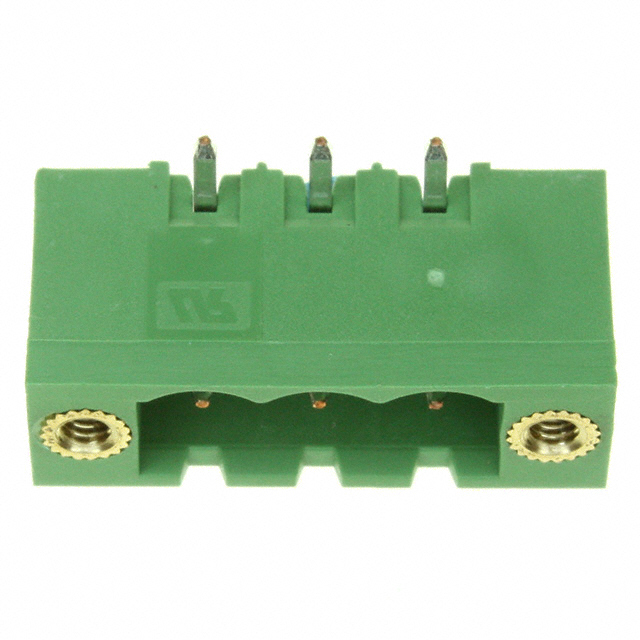

TERM BLOCK HDR 3POS 90DEG 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796864-3
ActiveTE Connectivity AMP Connectors
TERM BLOCK HDR 3POS 90DEG 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796864-3 | 796864 Series |
|---|---|---|
| Color | Green | Green |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 3.5 mm | 3.5 mm |
| Contact Tail Length | 0.138 in | 0.138 in |
| Features | Mating Flange | Mating Flange |
| Header Orientation | 90°, Right Angle | 90°, Right Angle |
| Insulation Height | 8.36 mm | 8.36 mm |
| Insulation Height | 0.329 in | 0.329 in |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | - | 2 - 8 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Positions Per Level | 3 | 2 - 8 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 300 V | 300 V |
796864 Series
TERM BLOCK HDR 3POS 90DEG 5MM
| Part | Features | Mounting Type | Termination Style | Material Flammability Rating | Contact Material | Insulation Height | Insulation Height | Contact Tail Length | Contact Tail Length | Pitch [x] | Pitch [x] | Header Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Number of Levels | Positions Per Level | Type | Voltage - UL | Contact Mating Finish | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796864-3 | Mating Flange | Through Hole | Solder | UL94 V-0 | Phosphor Bronze | 8.36 mm | 0.329 in | 3.5 mm | 0.138 in | 5 mm | 0.197 in | 90°, Right Angle | -40 °C | 110 °C | 1 | 3 | Header, Male Pins, Shrouded (4 Side) | 300 V | Tin | Green | |
TE Connectivity AMP Connectors 796864-8 | Mating Flange | Through Hole | Solder | UL94 V-0 | Phosphor Bronze | 8.36 mm | 0.329 in | 3.5 mm | 0.138 in | 5 mm | 0.197 in | 90°, Right Angle | -40 °C | 110 °C | 1 | 8 | Header, Male Pins, Shrouded (4 Side) | 300 V | Tin | Green | 8 |
TE Connectivity AMP Connectors 796864-2 | Mating Flange | Through Hole | Solder | UL94 V-0 | Phosphor Bronze | 8.36 mm | 0.329 in | 3.5 mm | 0.138 in | 5 mm | 0.197 in | 90°, Right Angle | -40 °C | 110 °C | 1 | 2 | Header, Male Pins, Shrouded (4 Side) | 300 V | Tin | Green | 2 |
TE Connectivity AMP Connectors 796864-6 | Mating Flange | Through Hole | Solder | UL94 V-0 | Phosphor Bronze | 8.36 mm | 0.329 in | 3.5 mm | 0.138 in | 5 mm | 0.197 in | 90°, Right Angle | -40 °C | 110 °C | 1 | 6 | Header, Male Pins, Shrouded (4 Side) | 300 V | Tin | Green | 6 |
TE Connectivity AMP Connectors 796864-4 | Mating Flange | Through Hole | Solder | UL94 V-0 | Phosphor Bronze | 8.36 mm | 0.329 in | 3.5 mm | 0.138 in | 5 mm | 0.197 in | 90°, Right Angle | -40 °C | 110 °C | 1 | 4 | Header, Male Pins, Shrouded (4 Side) | 300 V | Tin | Green | 4 |
TE Connectivity AMP Connectors 796864-5 | Mating Flange | Through Hole | Solder | UL94 V-0 | Phosphor Bronze | 8.36 mm | 0.329 in | 3.5 mm | 0.138 in | 5 mm | 0.197 in | 90°, Right Angle | -40 °C | 110 °C | 1 | 5 | Header, Male Pins, Shrouded (4 Side) | 300 V | Tin | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.85 | |
| 10 | $ 2.54 | |||
| 25 | $ 2.53 | |||
| 50 | $ 2.50 | |||
| 200 | $ 2.28 | |||
Description
General part information
796864 Series
3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
