796864-6

Active

TE Connectivity AMP Connectors

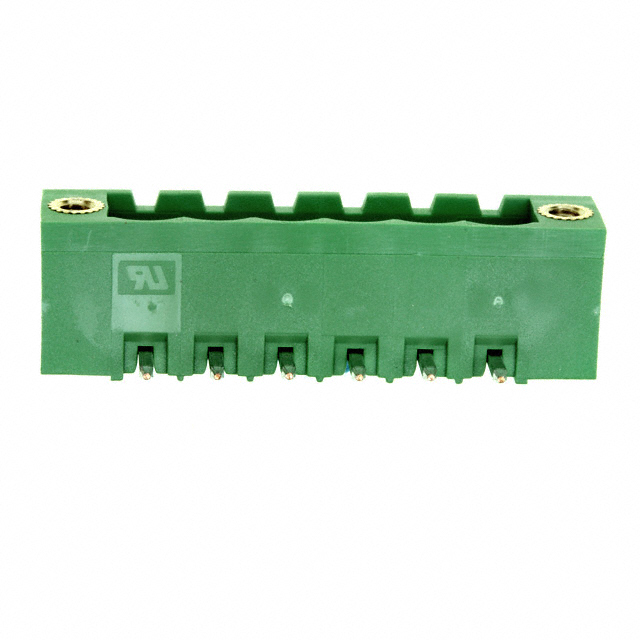

TERM BLOCK HDR 6POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796864-6

Active

TE Connectivity AMP Connectors

TERM BLOCK HDR 6POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1200	$ 2.34

Description

General part information

796864 Series

6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796864-6	796864 Series

Color	Green	Green
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Features	Mating Flange	Mating Flange
Header Orientation	90°, Right Angle	90°, Right Angle
Insulation Height	8.36 mm	8.36 mm
Insulation Height	0.329 in	0.329 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	6	2 - 8
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	6	2 - 8
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

796864 Series

TERM BLOCK HDR 3POS 90DEG 5MM

Part	Features	Mounting Type	Termination Style	Material Flammability Rating	Contact Material	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Pitch [x]	Pitch [x]	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Positions Per Level	Type	Voltage - UL	Contact Mating Finish	Color	Number of Positions
TE Connectivity AMP Connectors 796864-3	Mating Flange	Through Hole	Solder	UL94 V-0	Phosphor Bronze	8.36 mm	0.329 in	3.5 mm	0.138 in	5 mm	0.197 in	90°, Right Angle	-40 °C	110 °C	1	3	Header, Male Pins, Shrouded (4 Side)	300 V	Tin	Green
TE Connectivity AMP Connectors 796864-8	Mating Flange	Through Hole	Solder	UL94 V-0	Phosphor Bronze	8.36 mm	0.329 in	3.5 mm	0.138 in	5 mm	0.197 in	90°, Right Angle	-40 °C	110 °C	1	8	Header, Male Pins, Shrouded (4 Side)	300 V	Tin	Green	8
TE Connectivity AMP Connectors 796864-2	Mating Flange	Through Hole	Solder	UL94 V-0	Phosphor Bronze	8.36 mm	0.329 in	3.5 mm	0.138 in	5 mm	0.197 in	90°, Right Angle	-40 °C	110 °C	1	2	Header, Male Pins, Shrouded (4 Side)	300 V	Tin	Green	2
TE Connectivity AMP Connectors 796864-6	Mating Flange	Through Hole	Solder	UL94 V-0	Phosphor Bronze	8.36 mm	0.329 in	3.5 mm	0.138 in	5 mm	0.197 in	90°, Right Angle	-40 °C	110 °C	1	6	Header, Male Pins, Shrouded (4 Side)	300 V	Tin	Green	6
TE Connectivity AMP Connectors 796864-4	Mating Flange	Through Hole	Solder	UL94 V-0	Phosphor Bronze	8.36 mm	0.329 in	3.5 mm	0.138 in	5 mm	0.197 in	90°, Right Angle	-40 °C	110 °C	1	4	Header, Male Pins, Shrouded (4 Side)	300 V	Tin	Green	4
TE Connectivity AMP Connectors 796864-5	Mating Flange	Through Hole	Solder	UL94 V-0	Phosphor Bronze	8.36 mm	0.329 in	3.5 mm	0.138 in	5 mm	0.197 in	90°, Right Angle	-40 °C	110 °C	1	5	Header, Male Pins, Shrouded (4 Side)	300 V	Tin	Green
