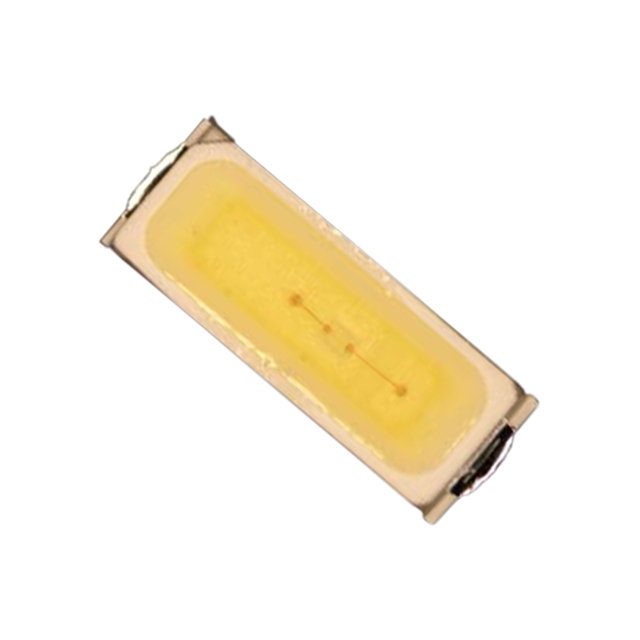

SML-LX4014UWC-TR

Active

Lumex Opto/Components Inc.

LED TITANBRITE COOL WHT SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED TITANBRITE COOL WHT SMD

Technical Specifications

Parameters and characteristics for this part

LED TITANBRITE COOL WHT SMD

Part	Voltage - Forward (Vf) (Typ)	Flux @ 25°C, Current - Test	Package / Case	Current - Max [Max]	Mounting Type	Lumens/Watt @ Current - Test	CCT (K)	Viewing Angle	Color	Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package
Lumex Opto/Components Inc. SML-LX4014UWC-TR	3.1 V	21 lm	1606 (4014 Metric)	60 mA	Surface Mount	113 lm/W	6500 K	120 °	Cool, White	60 mA	3.8 mm	0.15 "	1.4 mm	0.055 in	0.6 mm	0.024 in	SMD

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting TitanBrite™ White, Cool 6500K 3.1V 60mA 120° 1606 (4014 Metric)
