ET60T-000-3-08-D02-L-R1-S-H

Active

Samtec Inc.

CONN HEADER 26POS PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsET60S Series Other Related Documents 03 Datasheet +2

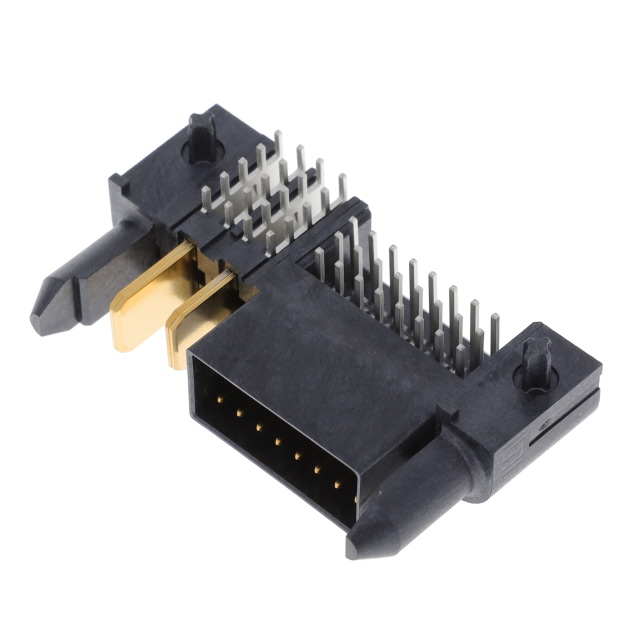

ET60T-000-3-08-D02-L-R1-S-H

Active

Samtec Inc.

CONN HEADER 26POS PCB

Deep-Dive with AI

DocumentsET60S Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ET60T-000-3-08-D02-L-R1-S-H

Color	Black
Connector Style	EXTreme Ten60Power
Connector Type	Header, Male Pins and Blades
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Layout, Typical [custom]	2
Contact Layout, Typical [custom]	24
Current Rating (Amps)	0.044 A
Features	Guide Pin, Board Guide
Mounting Type	Through Hole, Right Angle
Number of Positions	26
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder
Voltage Rating	250 VDC

ET60T-000 Series

Part	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Connector Style	Number of Positions Loaded	Termination	Contact Finish Thickness	Contact Finish Thickness	Features	Voltage Rating	Color	Current Rating (Amps)	Contact Finish	Number of Positions	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch [x]	Pitch [x]	Contact Layout, Typical	Number of Rows	Number of Columns
Samtec Inc. ET60T-000-3-08-D02-L-R1-S-H	2	24	EXTreme Ten60Power	All	Solder	10 Áin	0.25 Ám	Board Guide Guide Pin	250 VDC	Black	0.044 A	Gold	26	Header Male Pins and Blades	-40 °C	105 ░C	Through Hole Right Angle	2.54 mm	0.1 in
Samtec Inc. ET60T-000-0-00-D06-L-R1-S-H			EXTreme Ten60Power	All	Solder	10 Áin	0.25 Ám	Board Guide Guide Pin	250 VDC	Black	0.044 A	Gold	6	Header Male Blades	-40 °C	105 ░C	Through Hole Right Angle	5.5 mm	0.217 in	6 Power
Samtec Inc. ET60T-000-3-08-000-L-R1-S			EXTreme Ten60Power	All	Solder	10 Áin	0.25 Ám	Board Guide Guide Pin	250 VDC	Black	2.8 A	Gold	24	Header Male Pins	-40 °C	105 ░C	Through Hole Right Angle	2.54 mm	0.1 in		3	8
Samtec Inc. ET60T-000-3-08-D02-L-R1-S	2	24	EXTreme Ten60Power	All	Solder	10 Áin	0.25 Ám	Board Guide Guide Pin	250 VDC	Black	0.044 A	Gold	26	Header Male Pins and Blades	-40 °C	105 ░C	Through Hole Right Angle	2.54 mm	0.1 in
Samtec Inc. ET60T-000-0-00-D03-L-R1-S			EXTreme Ten60Power	All	Solder	10 Áin	0.25 Ám	Board Guide Guide Pin	250 VDC	Black	0.044 A	Gold		Header Male Blades	-40 °C	105 ░C	Through Hole Right Angle	5.5 mm	0.217 in	3 Power
Samtec Inc. ET60T-000-3-08-D03-S-R1-S	3	24	EXTreme Ten60Power	All	Solder	30 Áin	0.76 Ám	Board Guide Guide Pin	250 VDC	Black	0.044 A	Gold	27	Header Male Pins and Blades	-40 °C	105 ░C	Through Hole Right Angle	2.54 mm	0.1 in
Samtec Inc. ET60T-000-3-08-000-S-R1-S-H			EXTreme Ten60Power	All	Solder	30 Áin	0.76 Ám	Board Guide Guide Pin	250 VDC	Black	0.044 A	Gold	24	Header Male Pins	-40 °C	105 ░C	Through Hole Right Angle	2.54 mm	0.1 in
Samtec Inc. ET60T-000-3-08-000-L-R1-S-H			EXTreme Ten60Power	All	Solder	10 Áin	0.25 Ám	Board Guide Guide Pin	250 VDC	Black	0.044 A	Gold	24	Header Male Pins	-40 °C	105 ░C	Through Hole Right Angle	2.54 mm	0.1 in
Samtec Inc. ET60T-000-3-08-D02-S-R1-S-H	2	24	EXTreme Ten60Power	All	Solder	30 Áin	0.76 Ám	Board Guide Guide Pin	250 VDC	Black	0.044 A	Gold	26	Header Male Pins and Blades	-40 °C	105 ░C	Through Hole Right Angle	2.54 mm	0.1 in
Samtec Inc. ET60T-000-0-00-D02-L-R1-S			EXTreme Ten60Power	All	Solder	10 Áin	0.25 Ám	Board Guide Guide Pin	250 VDC	Black	0.044 A	Gold	2	Header Male Blades	-40 °C	105 ░C	Through Hole Right Angle	5.5 mm	0.217 in	2 Power
