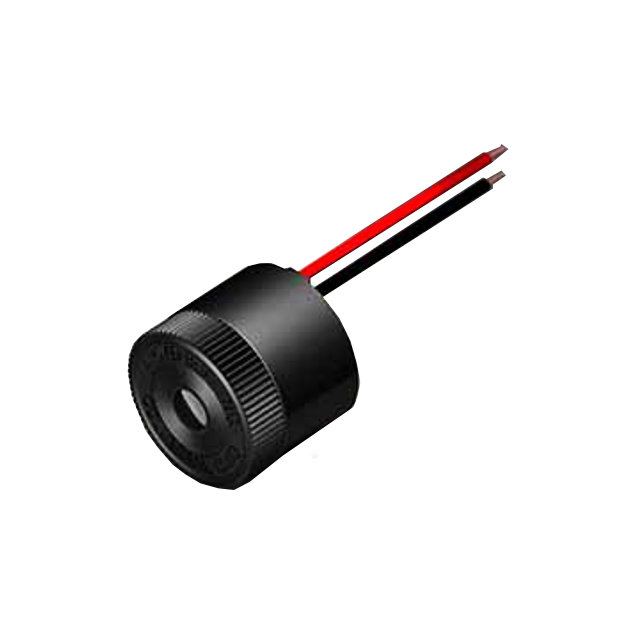

M-100W

Active

Floyd Bell Inc

BUZZER PIEZO 26.16MM PNL MNT

Search across all available documentation for this part.

Active

Floyd Bell Inc

BUZZER PIEZO 26.16MM PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	M-100W

Approval Agency	UR, UL
Current - Supply [Max]	60 mA
Current - Supply [Min]	10 mA
Driver Circuitry	Internally Driven, Indicator
Frequency	2.9 kHz
Height - Seated (Max) [Max] [z]	0.88 "
Height - Seated (Max) [Max] [z]	22.35 mm
Ingress Protection	IP68 - Dust Tight, Waterproof
Input Type	DC
Operating Mode	Single Tone
Port Location	Top
Size / Dimension [diameter]	26.16 mm
Size / Dimension [diameter]	1.03 Dia
Sound Pressure Level (SPL)	102 dB
Technology	Piezo
Termination	Wire Leads
Voltage Range [Max]	6 VDC
Voltage Range [Min]	3 V

BUZZER PIEZO 26.16MM PNL MNT

Part	Sound Pressure Level (SPL)	Termination	Ingress Protection	Voltage Range [Min]	Voltage Range [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Current - Supply [Max]	Current - Supply [Min]	Input Type	Port Location	Technology	Driver Circuitry	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Approval Agency	Operating Mode
Floyd Bell Inc M-100W	102 dB	Wire Leads	IP68 - Dust Tight, Waterproof	3 V	6 VDC	26.16 mm	1.03 Dia	60 mA	10 mA	DC	Top	Piezo	Indicator, Internally Driven	2.9 kHz	0.88 "	22.35 mm	UL, UR	Single Tone

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.34

General part information

Buzzers Indicator, Internally Driven Piezo 10 ~ 60mA 2.9kHz 102dB @ 6V, 61cm Panel Mount Wire Leads
