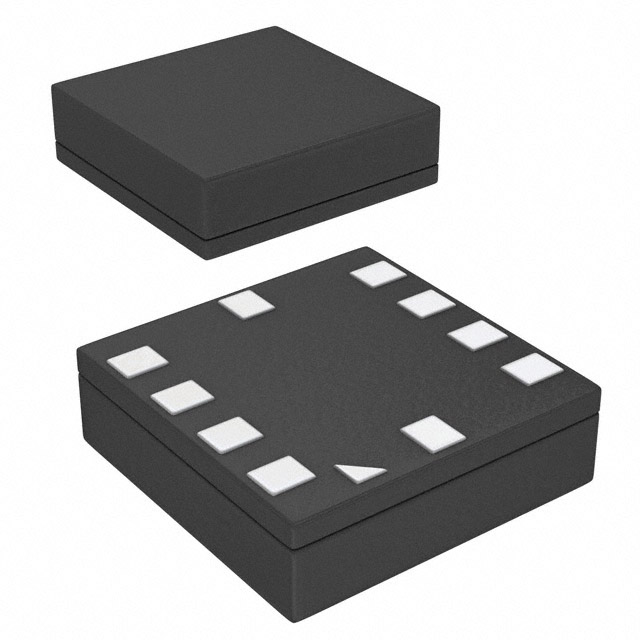

KXTI9-1001-FR

Obsolete

Kionix Inc.

ACCELEROMETER 2-8G I2C 10LGA

Search across all available documentation for this part.

Obsolete

Kionix Inc.

ACCELEROMETER 2-8G I2C 10LGA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Accelerometer X, Y, Z Axis ±2g, 4g, 8g 6.25Hz ~ 400Hz 10-LGA (3x3)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	KXTI9-1001-FR	KXTI9 Series

Acceleration Range	4 g, 8 g	4 - 8 g
Acceleration Range [Max]	2 g	2 g
Acceleration Range [Min]	-2 g	-2 g
Axis [x]	X	X
Axis [y]	Y	Y
Axis [z]	Z	Z
Bandwidth [Max]	400 Hz	400 Hz
Bandwidth [Min]	6.25 Hz	6.25 Hz
Features	Adjustable Bandwidth, Selectable Scale	Adjustable Bandwidth, Selectable Scale
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Output Type	I2C	I2C
Package / Case	10-VFLGA	10-VFLGA
Sensing Range	-	2 - 8 g
Sensitivity	-	1024 LSb/g
Sensitivity (LSB/g)	1024 LSB/g, 256 LSB/g	256 - 1024 LSB/g
Sensor Type	-	Accelerometer, 3 Axis
Supplied Contents	-	Board(s)
Supplier Device Package	10-LGA (3x3)	10-LGA (3x3)
Type	Digital	Digital
Utilized IC / Part	-	KXTI9-1001
Voltage - Supply [Max]	3.6 V	3.6 V
Voltage - Supply [Min]	1.71 V	1.71 - 1.8 V

ACCELEROMETER 2-8G I2C 10LGA

Part	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Sensitivity (LSB/g)	Type	Features	Mounting Type	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Axis [z]	Axis [y]	Axis [x]	Bandwidth [Min]	Bandwidth [Max]	Sensitivity	Supplied Contents	Sensor Type	Utilized IC / Part	Sensing Range
Kionix Inc. KXTI9-1001-FR	4 g, 8 g	-2 g	2 g	I2C	85 °C	-40 °C	10-VFLGA	256 LSB/g, 1024 LSB/g	Digital	Adjustable Bandwidth, Selectable Scale	Surface Mount	10-LGA (3x3)	3.6 V	1.71 V	Z	Y	X	6.25 Hz	400 Hz
Kionix Inc. KXTI9-1001-PR	4 g, 8 g	-2 g	2 g	I2C	85 °C	-40 °C	10-VFLGA	256 LSB/g, 1024 LSB/g	Digital	Adjustable Bandwidth, Selectable Scale	Surface Mount	10-LGA (3x3)	3.6 V	1.71 V	Z	Y	X	6.25 Hz	400 Hz
Kionix Inc. EVAL-KXTI9-1001													3.6 V	1.8 V						1024 LSb/g	Board(s)	Accelerometer, 3 Axis	KXTI9-1001	2 g, 4 g, 8 g
