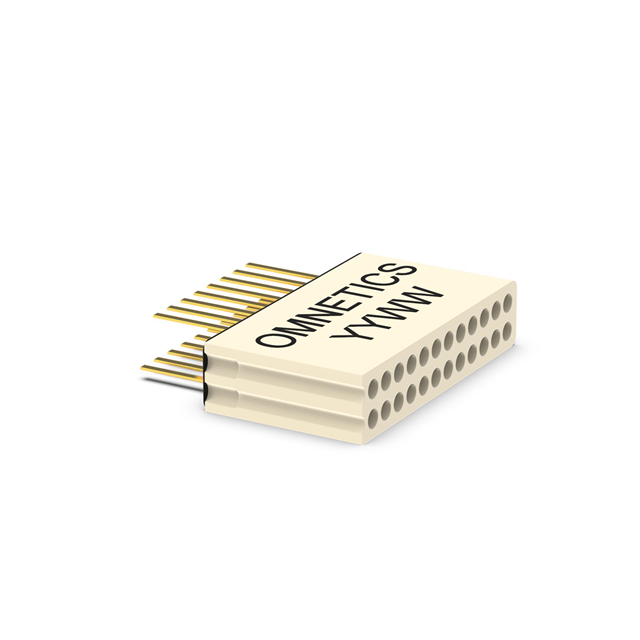

A79014-001

Active

Omnetics

18 POSITION DUAL ROW MALE NANO-M

Search across all available documentation for this part.

Active

Omnetics

18 POSITION DUAL ROW MALE NANO-M

Technical Specifications

Parameters and characteristics for this part

Specification	A79014-001

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Length - Post	2.54 mm
Contact Length - Post	0.1 in
Contact Material	Beryllium Copper
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Features	Guide Pin
Insulation Color	Natural
Insulation Height	0.173 in
Insulation Height	4.4 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.025 in
Pitch - Mating	0.64 mm
Row Spacing - Mating	0.03 in
Row Spacing - Mating	0.76 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

18 POSITION DUAL ROW MALE NANO-M

Part	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch - Mating	Pitch - Mating	Fastening Type	Number of Positions	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Insulation Height	Insulation Height	Contact Finish - Post	Contact Type	Current Rating (Amps)	Contact Shape	Connector Type	Contact Finish - Mating	Insulation Color	Number of Rows	Number of Positions Loaded	Mounting Type	Contact Length - Post	Contact Length - Post	Row Spacing - Mating	Row Spacing - Mating	Style	Insulation Material
Omnetics A79014-001	Shrouded - 4 Wall	-55 °C	125 °C	Beryllium Copper	0.025 in	0.64 mm	Push-Pull	18	Guide Pin	1.27 µm	50 µin	Solder	0.173 in	4.4 mm	Tin-Lead	Male Pin	1 A	Circular	Header	Gold	Natural	2	All	Through Hole	2.54 mm	0.1 in	0.03 in	0.76 mm	Board to Cable/Wire	Thermoplastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 18 position 0.025" (0.64mm)
