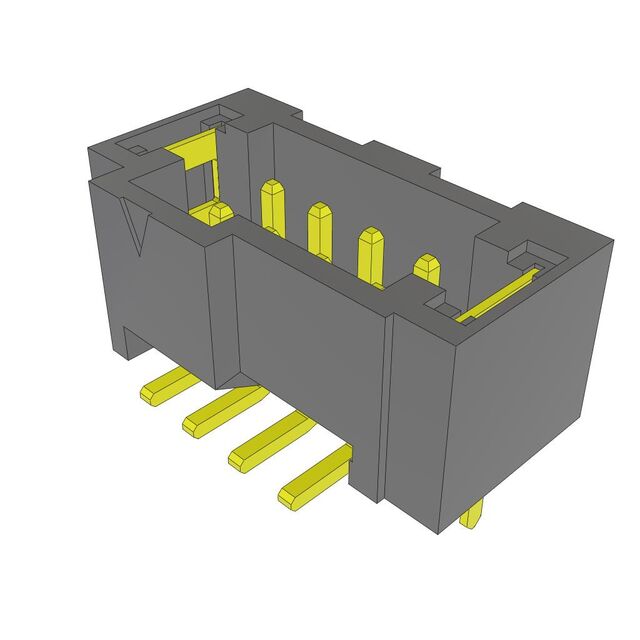

T2M-104-01-S-D-SM-WT

Active

Samtec Inc.

CONN HEADER SMD 8POS 2MM

Search across all available documentation for this part.

Active

Samtec Inc.

CONN HEADER SMD 8POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	T2M-104-01-S-D-SM-WT

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.8 A
Fastening Type	Push-Pull
Features	Solder Retention
Insulation Color	Black
Insulation Height	5.8 mm
Insulation Height	0.228 in
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

Headers & Wire Housings High Reliability Tiger Eye Discrete Wire Header, 2.00 mm Pitch

Part	Termination	Number of Positions	Shrouding	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Contact Shape	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Type	Connector Type	Contact Finish - Mating	Fastening Type	Style	Features	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Insulation Material	Number of Positions Loaded	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
Samtec Inc. T2M-104-01-S-D-SM-WT	Solder	8	Shrouded - 4 Wall	3.8 A	30 Áin	0.76 Ám	2	Square	Tin	0.079 in	2 mm	Phosphor Bronze	Male Pin	Header	Gold	Push-Pull	Board to Board Cable	Solder Retention	5.8 mm	0.228 in	0.079 in	2 mm	Black	Liquid Crystal Polymer (LCP)	All	Surface Mount	-55 °C	125 °C
Samtec Inc. T2M-104-01-L-D-SM-WT	Solder	8	Shrouded - 4 Wall	3.8 A	10 çin	0.25 çm	2	Square	Tin	0.079 in	2 mm	Phosphor Bronze	Male Pin	Header	Gold	Push-Pull	Board to Board Cable	Solder Retention	5.8 mm	0.228 in	0.079 in	2 mm	Black	Liquid Crystal Polymer (LCP)	All	Surface Mount	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.31

General part information

Headers & Wire Housings High Reliability Tiger Eye Discrete Wire Header, 2.00 mm Pitch
