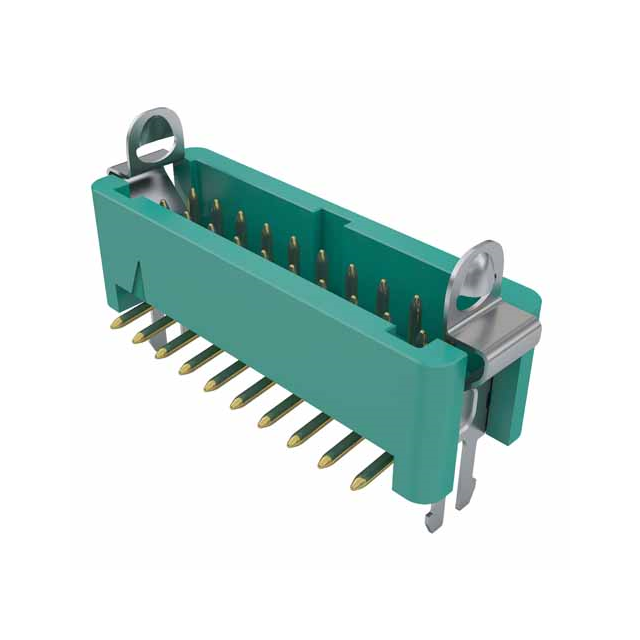

G125-MS10605L2P
ActiveHarwin Inc.
3+3 POS. MALE DIL VERTICAL SMT CONN. LATCHES ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
G125-MS10605L2P
ActiveHarwin Inc.
3+3 POS. MALE DIL VERTICAL SMT CONN. LATCHES ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-MS10605L2P |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 0.203 Ám |
| Contact Finish Thickness - Mating | 8 Áin |
| Contact Finish Thickness - Post | 8 µin |
| Contact Finish Thickness - Post | 0.203 µm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2 A |
| Fastening Type | Latch Lock |
| Insulation Color | Black |
| Insulation Height | 4.9 mm |
| Insulation Height | 0.193 in |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Mated Stacking Heights | 7.23 mm, 7.31 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Row Spacing - Mating | 0.049 in |
| Row Spacing - Mating | 1.25 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 450 VAC/DC |
G125-MS1 Series
| Part | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Contact Material | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Voltage Rating | Number of Rows | Contact Finish - Mating | Shrouding | Insulation Material | Connector Type | Fastening Type | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Mated Stacking Heights | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Termination | Style | Material Flammability Rating | Number of Positions Loaded | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Features | Mated Stacking Heights [z] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | Gold | 450 VAC/DC | 2 | Gold | Shrouded - 4 Wall | Glass Filled Nylon 4T Polyamide (PA4T) | Header | Latch Lock | 2 A | 0.203 Ám | 8 Áin | Black | 7.23 mm 7.31 mm | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | 20 | 8 µin | 0.203 µm | Male Pin | |||
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | Gold | 450 VAC/DC | 2 | Gold | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Header | Latch Lock | 2 A | 0.203 Ám | 8 Áin | Black | 7.23 mm 7.31 mm | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | 10 | 8 µin | 0.203 µm | Male Pin | |||
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | Gold | 450 V | 2 | Gold | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Header | 2 A | 0.203 Ám | 8 Áin | Green | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | 6 | 8 µin | 0.203 µm | Male Pin | Mating Flange Mounting Flange Pick and Place | 7.3 mm 7.44 mm | |||
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | Gold | 450 V | 2 | Gold | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Header | 2 A | 0.203 Ám | 8 Áin | Green | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | 34 | 8 µin | 0.203 µm | Male Pin | Mating Flange Mounting Flange Pick and Place | 7.3 mm 7.44 mm | |||
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | Gold | 450 VAC/DC | 2 | Gold | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Header | Latch Lock | 2 A | 0.203 Ám | 8 Áin | Black | 7.23 mm 7.31 mm | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | 6 | 8 µin | 0.203 µm | Male Pin | |||
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | 450 V | 2 | Gold | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Header | 2 A | 0.203 Ám | 8 Áin | Green | 7.35 mm 7.45 mm 7.8 mm | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | 26 | Male Pin | Mating Flange Mounting Flange Pick and Place | ||||||
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | Gold | 450 V | 2 | Gold | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Header | 2 A | 0.203 Ám | 8 Áin | Green | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | 8 µin | 0.203 µm | Male Pin | Mating Flange Mounting Flange Pick and Place | 7.3 mm 7.44 mm | 16 | |||
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | 2 | Gold | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Header | Push-Pull | 2 A | 0.203 Ám | 8 Áin | Green | 7.35 mm 7.45 mm 7.8 mm | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | Male Pin | Pick and Place Solder Retention | 16 | ||||||
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | 450 V | 2 | Gold | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Header | 2 A | 0.203 Ám | 8 Áin | Green | 7.35 mm 7.45 mm 7.8 mm | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | 50 | Male Pin | Mating Flange Mounting Flange Pick and Place | ||||||
Harwin Inc. | 0.049 in | 1.25 mm | Circular | Phosphor Bronze | 4.9 mm | 0.193 in | 1.25 mm | 0.049 in | 2 | Gold | Shrouded - 4 Wall | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | Header | Push-Pull | 2 A | 0.203 Ám | 8 Áin | Green | 7.35 mm 7.45 mm 7.8 mm | -65 ░C | 150 °C | Surface Mount | Solder | Board to Board Cable | UL94 V-0 | All | 6 | Male Pin | Pick and Place Solder Retention |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-MS1 Series
Connector Header Surface Mount 6 position 0.049" (1.25mm)
