ANX80-UL-30A

Active

OptiFuse

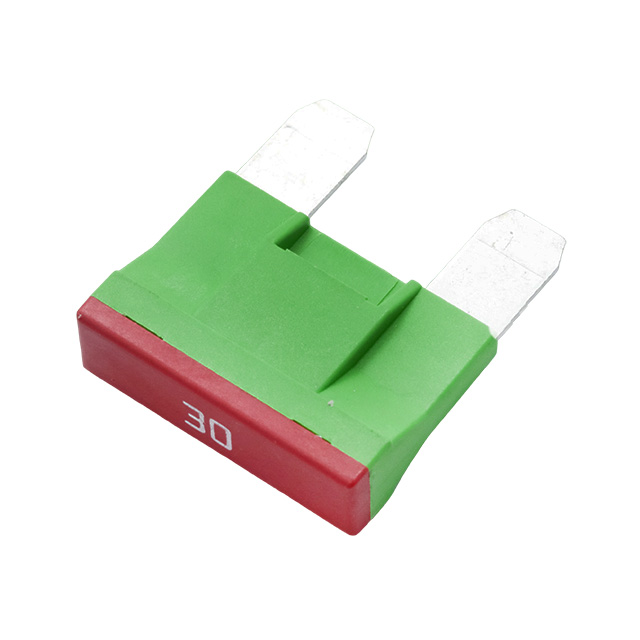

FUSE AUTO 30A 80VDC BLADE MAX

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 30A 80VDC BLADE MAX

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 A AC 80 V DC Fuse Automotive Requires Holder Blade, Max

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ANX80-UL-30A	ANX80 Series

Approval Agency	cURus, UL 248	cURus, UL 248
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Green	Red, Gray, Green
Current Rating (Amps)	30 A	25 - 50 A
DC Cold Resistance	0.0022 Ohms	0.00117 - 0.0029 Ohms
Fuse Type	Automotive	Automotive
Melting I²t	3330 I²t	2188 - 10000
Mounting Type	Requires Holder	Requires Holder
Package / Case	Blade, Max	Blade, Max
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	30 mm	30 mm
Size / Dimension [x]	1.181 in	1.181 in
Size / Dimension [y]	8.8 mm	8.8 mm
Size / Dimension [y]	0.346 in	0.346 in
Size / Dimension [z]	21.5 mm	21.5 mm
Size / Dimension [z]	0.846 in	0.846 in
Voltage Rating - DC	80 V	80 V

FUSE AUTO 50A 80VDC BLADE MAX

Part	Approval Agency	DC Cold Resistance	Mounting Type	Current Rating (Amps)	Fuse Type	Package / Case	Voltage Rating - DC	Response Time	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Color	Melting I²t	Breaking Capacity @ Rated Voltage
OptiFuse ANX80-UL-50A	cURus, UL 248	0.00117 Ohms	Requires Holder	50 A	Automotive	Blade, Max	80 V	Fast Blow	8.8 mm	0.346 in	21.5 mm	0.846 in	30 mm	1.181 in	Red	10000	1 kA
OptiFuse ANX80-UL-25A	cURus, UL 248	0.0029 Ohms	Requires Holder	25 A	Automotive	Blade, Max	80 V	Fast Blow	8.8 mm	0.346 in	21.5 mm	0.846 in	30 mm	1.181 in	Gray	2188	1 kA
OptiFuse ANX80-UL-30A	cURus, UL 248	0.0022 Ohms	Requires Holder	30 A	Automotive	Blade, Max	80 V	Fast Blow	8.8 mm	0.346 in	21.5 mm	0.846 in	30 mm	1.181 in	Green	3330 I²t	1 kA
