EPS.00.250.NTN

Active

LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EPS.00.250.NTN

Active

LEMO

CONN NIMCAMAC RCPT R/A 50OHM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.34
		1	$ 17.87
		10	$ 18.68
		10	$ 17.25
		25	$ 17.88
		25	$ 16.11
		50	$ 15.12
		50	$ 17.30
		100	$ 14.25
		100	$ 16.72
		250	$ 15.80
		500	$ 15.34

Description

General part information

EPS.00.250 Series

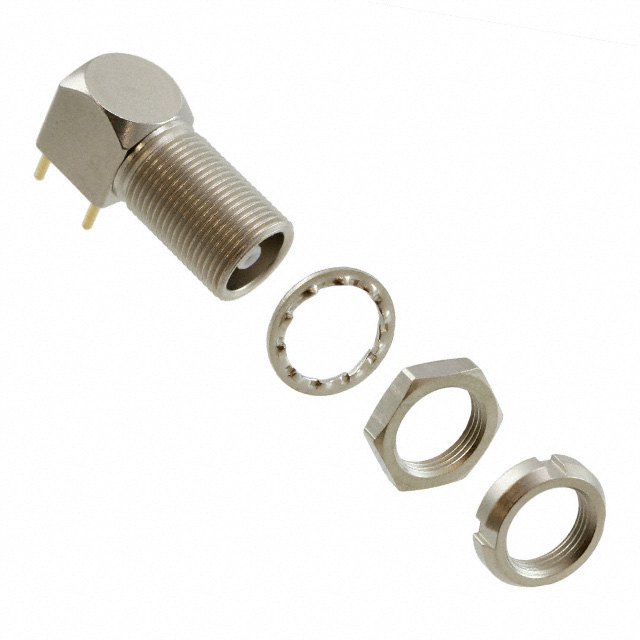

NIM-CAMAC CD/N 549 Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole, Right Angle Solder

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EPS.00.250.NTN	EPS.00.250 Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Bronze	Brass, Bronze
Center Contact Plating	Gold	Gold
Connector Style	NIM-CAMAC CD/N 549	NIM-CAMAC CD/N 549
Connector Type	Receptacle, Female Socket	Male Pin, Receptacle, Female Socket
Contact Termination	Solder	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Push-Pull	Push-Pull
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Lockwasher, 2 Nuts, 1 Connector	1 Lockwasher, 2 Nuts, 1 Connector
Ingress Protection	IP50	IP50
Mating Cycles	5000	5000
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount
Number of Ports	1	1
Operating Temperature [Max]	260 ░C	260 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Shield Termination	Solder	Solder
Voltage Rating	700 VDC	700 VDC

EPS.00.250 Series

CONN R/A PCB PLUG COAX PIN

Part	Connector Style	Center Contact Plating	Mounting Type	Contact Termination	Connector Type	Center Contact Material	Fastening Type	Voltage Rating	Ingress Protection	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Shield Termination	Includes	Housing Color	Mating Cycles	Body Material	Mounting Feature	Impedance	Number of Ports
LEMO EPS.00.250.NTD	NIM-CAMAC CD/N 549	Gold	Panel Mount, Right Angle, Through Hole	Solder	Male Pin, Receptacle	Brass	Push-Pull	700 VDC	IP50	Nickel	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Solder	1 Connector, 1 Lockwasher, 2 Nuts	Silver	5000	Brass	Bulkhead - Front Side Nut	50 Ohms
LEMO EPS.00.250.NTN27	NIM-CAMAC CD/N 549	Gold	Panel Mount, Right Angle, Through Hole	Solder	Female Socket, Receptacle	Bronze	Push-Pull	700 VDC	IP50	Nickel	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Solder	1 Connector, 1 Lockwasher, 2 Nuts	Silver	5000	Brass	Bulkhead - Front Side Nut	50 Ohms	1
LEMO EPS.00.250.NTDY	NIM-CAMAC CD/N 549	Gold	Panel Mount, Right Angle, Through Hole	Solder	Male Pin, Receptacle	Bronze	Push-Pull	700 VDC	IP50	Nickel	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Solder	1 Connector, 1 Lockwasher, 2 Nuts	Silver	5000	Brass	Bulkhead - Front Side Nut	50 Ohms	1
LEMO EPS.00.250.NTN9	NIM-CAMAC CD/N 549	Gold	Panel Mount, Right Angle, Through Hole	Solder	Female Socket, Receptacle	Bronze	Push-Pull	700 VDC	IP50	Nickel	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Solder	1 Connector, 1 Lockwasher, 2 Nuts	Silver	5000	Brass	Bulkhead - Front Side Nut	50 Ohms	1
LEMO EPS.00.250.NTN	NIM-CAMAC CD/N 549	Gold	Panel Mount, Right Angle, Through Hole	Solder	Female Socket, Receptacle	Bronze	Push-Pull	700 VDC	IP50	Nickel	-55 °C	260 ░C	Polytetrafluoroethylene (PTFE)	Solder	1 Connector, 1 Lockwasher, 2 Nuts	Silver	5000	Brass	Bulkhead - Front Side Nut	50 Ohms	1
