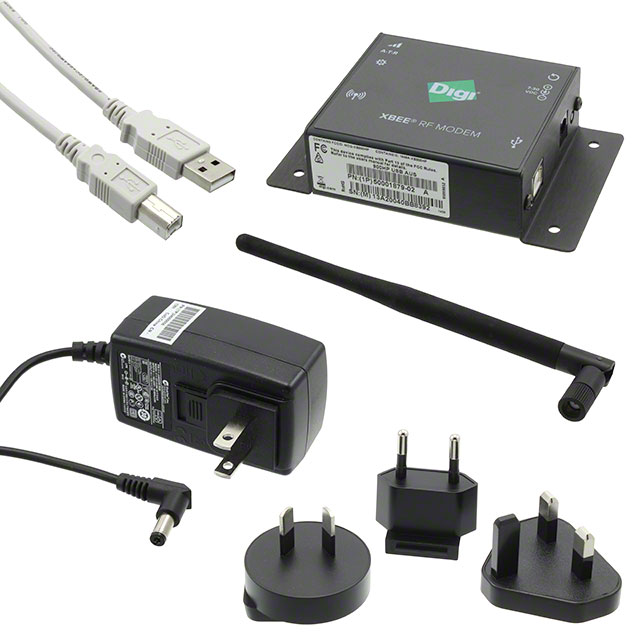

XM-M92-UP-AA
ObsoleteDigi
MODEM XBEE 900HP 200K USB AUS
Deep-Dive with AI
Search across all available documentation for this part.
XM-M92-UP-AA
ObsoleteDigi
MODEM XBEE 900HP 200K USB AUS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XM-M92-UP-AA |
|---|---|
| Applications | General Purpose |
| Data Rate (Max) [Max] | 200 kbps |
| Frequency [Max] | 928 MHz |
| Frequency [Min] | 902 MHz |
| Function | Modem, Transceiver |
| Interface | USB |
| Modulation or Protocol | FHSS |
| Power - Output | 24 dBm |
| Sensitivity | -110 dBm |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.1 V |
XM-M92 Series
| Part | Frequency [Min] | Frequency [Max] | Power - Output | Data Rate (Max) [Max] | Interface | Sensitivity | Voltage - Supply [Min] | Voltage - Supply [Max] | Modulation or Protocol | Applications | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|
Digi | 902 MHz | 928 MHz | 24 dBm | 200 kbps | RS-485 | -110 dBm | 2.1 V | 3.6 V | FHSS | General Purpose | Modem Transceiver |
Digi | 902 MHz | 928 MHz | 24 dBm | 200 kbps | USB | -110 dBm | 2.1 V | 3.6 V | FHSS | General Purpose | Modem Transceiver |
Digi | 902 MHz | 928 MHz | 24 dBm | 200 kbps | USB | -110 dBm | 2.1 V | 3.6 V | FHSS | General Purpose | Modem Transceiver |
Digi | 902 MHz | 928 MHz | 24 dBm | 200 kbps | RS-485 | -110 dBm | 2.1 V | 3.6 V | FHSS | General Purpose | Modem Transceiver |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XM-M92 Series
RF Transceiver, Modem 902MHz ~ 928MHz FHSS USB 200kbps
Documents
Technical documentation and resources
No documents available
