LM3S2739-IBZ50-A2

Obsolete

Luminary Micro

IC MCU 32BIT 128KB FLASH 108BGA

Search across all available documentation for this part.

Obsolete

Luminary Micro

IC MCU 32BIT 128KB FLASH 108BGA

Technical Specifications

Parameters and characteristics for this part

Specification	LM3S2739-IBZ50-A2

Connectivity	QEI, SPI, SSI, IrDA, Microwire, I2C, UART/USART, CANbus
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Data Converters [custom]	10
Data Converters [custom]	4
Mounting Type	Surface Mount
Number of I/O	56
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal

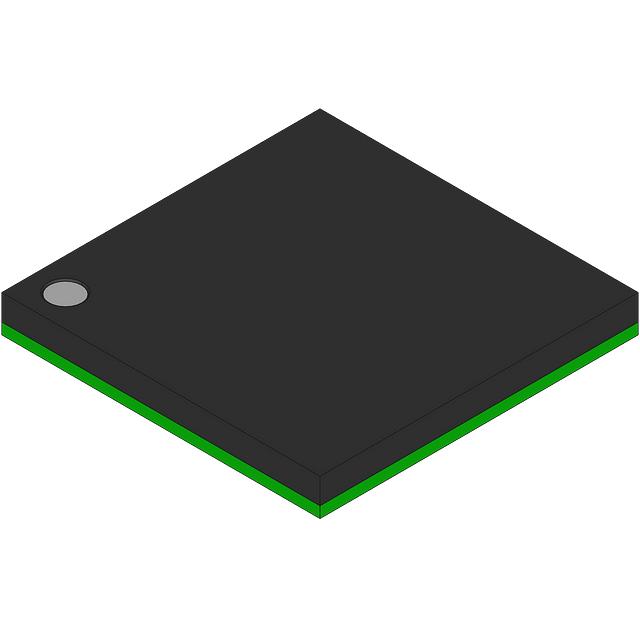

Package / Case	108-LFBGA
Program Memory Size	128 KB
Program Memory Type	FLASH
RAM Size	64 K
Speed	50 MHz
Supplier Device Package	108-BGA (10x10)
Voltage - Supply (Vcc/Vdd) [Max]	2.75 V
Voltage - Supply (Vcc/Vdd) [Min]	2.25 V

IC MCU 32BIT 128KB FLASH 108BGA

Part	Supplier Device Package	Core Processor	RAM Size	Speed	Package / Case	Core Size	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Size	Number of I/O	Data Converters [custom]	Data Converters [custom]	Connectivity	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Program Memory Type
Luminary Micro LM3S2739-IBZ50-A2	108-BGA (10x10)	ARM® Cortex®-M3	64 K	50 MHz	108-LFBGA	32-Bit Single-Core	2.25 V	2.75 V	128 KB	56	10	4	CANbus, I2C, IrDA, Microwire, QEI, SPI, SSI, UART/USART	Internal	85 °C	-40 °C	Surface Mount	FLASH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ARM® Cortex®-M3 Stellaris® ARM® Cortex®-M3S 2000 Microcontroller IC 32-Bit Single-Core 50MHz 128KB (128K x 8) FLASH 108-BGA (10x10)

Technical documentation and resources

No documents available
