HB16SKW01-5C-CB
ActivePUSHBUTTON SWITCH, HB SERIES, 8 MM, SPDT, ON-ON, SQUARE, RED
Deep-Dive with AI
Search across all available documentation for this part.
HB16SKW01-5C-CB
ActivePUSHBUTTON SWITCH, HB SERIES, 8 MM, SPDT, ON-ON, SQUARE, RED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HB16SKW01-5C-CB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Square |
| Circuit | SPDT |
| Color - Actuator/Cap | Red |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | Red, LED |
| Illumination Voltage (Nominal) | 2.1 VDC |
| Mechanical Life | 100000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 8 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 30 V |
| Voltage Rating - DC | 30 V |
HB16SKW01 Series
| Part | Switch Function | Termination Style | Actuator Type | Circuit | Panel Cutout Dimensions [diameter] | Actuator Marking | Voltage Rating - AC | Type | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Electrical Life | Voltage Rating - DC | Mechanical Life | Color - Actuator/Cap | Mounting Type | Illumination Voltage (Nominal) | Illumination Type, Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | On-On | Solder Lug | Button Square | SPDT | 8 mm | No Marking | 30 V | Standard | 70 °C | -25 °C | 100 mA | 50000 Cycles | 30 V | 100000 Cycles | Yellow | Panel Mount Front | ||
NKK Switches | On-On | Solder Lug | Button Square | SPDT | 8 mm | No Marking | 30 V | Illuminated Standard | 50 °C | -25 °C | 100 mA | 50000 Cycles | 30 V | 100000 Cycles | Red | Panel Mount Front | 2.1 VDC | LED Red |
NKK Switches | On-On | Solder Lug | Button Square | SPDT | 8 mm | No Marking | 30 V | Illuminated Standard | 50 °C | -25 °C | 100 mA | 50000 Cycles | 30 V | 100000 Cycles | Clear | Panel Mount Front | 3.5 VDC | Green LED |
NKK Switches | On-On | Solder Lug | Button Square | SPDT | 8 mm | No Marking | 30 V | Standard | 70 °C | -25 °C | 100 mA | 50000 Cycles | 30 V | 100000 Cycles | Green | Panel Mount Front | ||
NKK Switches | On-On | Solder Lug | Button Square | SPDT | 8 mm | No Marking | 30 V | Illuminated Standard | 50 °C | -25 °C | 100 mA | 50000 Cycles | 30 V | 100000 Cycles | Clear | Panel Mount Front | 3.3 VDC | LED White |
NKK Switches | On-On | Solder Lug | Button Square | SPDT | 8 mm | No Marking | 30 V | Standard | 70 °C | -25 °C | 100 mA | 50000 Cycles | 30 V | 100000 Cycles | White | Panel Mount Front | ||
NKK Switches | On-On | Solder Lug | Button Square | SPDT | 8 mm | No Marking | 30 V | Illuminated Standard | 50 °C | -25 °C | 100 mA | 50000 Cycles | 30 V | 100000 Cycles | Black | Panel Mount Front | 2.1 VDC | LED Red |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HB16SKW01 Series

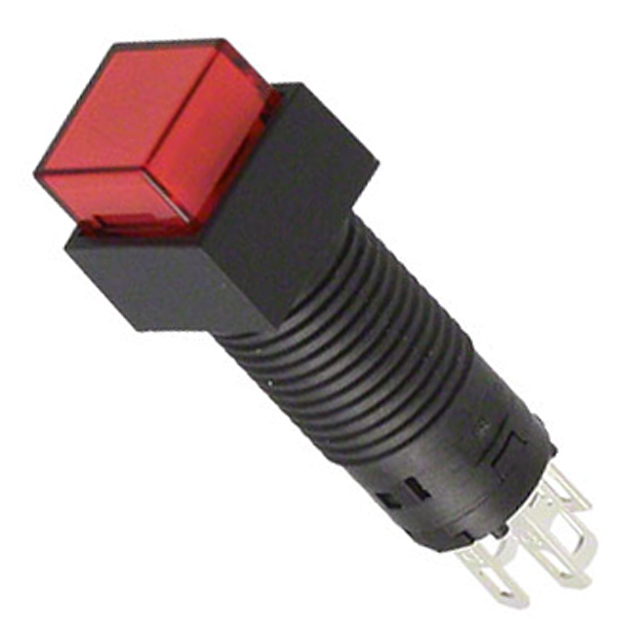

The HB16SKW01-5C-CB is a subminiature red-illuminated SPDT square Pushbutton Switch with caps having red lens and white diffuser. The end terminals are made of phosphor bronze with silver finish. The latch down feature gives indication of circuit status. It offers audible and tactile feedback with smooth and responsive operation. The sliding contacts with self-cleaning action provide contact stability, high reliability and increased operating life.
