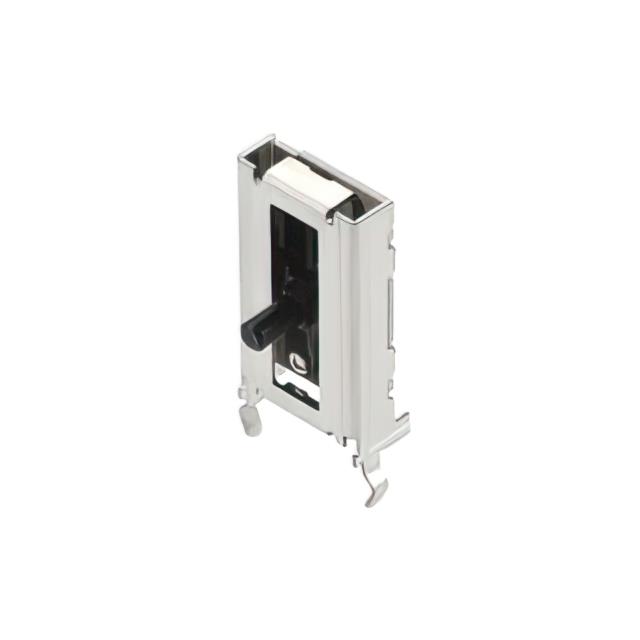

RD712A028A
ActiveALPS ALPINE CO., LTD
INDUSTRIAL MOTION & POSITION SENSORS 12V 20%
RD712A028A
ActiveALPS ALPINE CO., LTD
INDUSTRIAL MOTION & POSITION SENSORS 12V 20%
Description
General part information
RD7 Series
Resistive Sensor Linear Position Linear Slide
Technical Specifications
Parameters and characteristics for this part
| Specification | RD712A028A |
|---|---|
| Actuator Type | Linear Slide |
| For Measuring | Linear Position |
| Linear Range (Max) | 12 mm |
| Linear Range (Min) | 0 mm |
| Linearity Tolerance | 1 % |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Output | Analog Voltage |
| Package / Case | 3-SIP Module |
| Resistance | 2.2 kOhm |
| Resistance Tolerance (%) | 20 % |
| Technology | Resistive |
| Voltage - Supply | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
