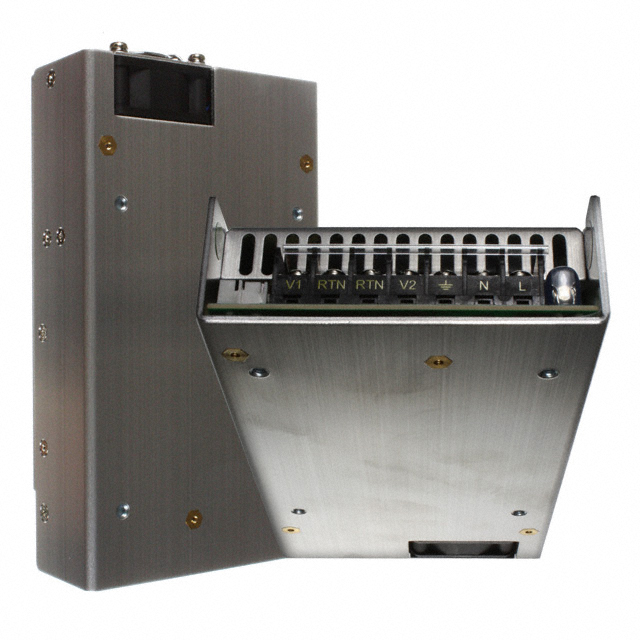

VF-D320-D1224A-CFS-1
ActiveCUI Inc.
AC/DC CONVERTER 12V 24V 320W
Deep-Dive with AI
Search across all available documentation for this part.
VF-D320-D1224A-CFS-1
ActiveCUI Inc.
AC/DC CONVERTER 12V 24V 320W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VF-D320-D1224A-CFS-1 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | IEC, EN, TUV, UL, CB Scheme, SIQ |
| Current - Output 1 | 16.67 A |
| Current - Output 2 | 8.33 A |
| Efficiency | 75 % |
| Features | PFC, Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 320 W |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [x] | 7 " |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 1.6 " |
| Size / Dimension [z] | 40.6 mm |
| Standard Number | 62368-1, 61000-3-3, 61000-3-2, 55024, 60950-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC, 264 VAC |
| Voltage - Input [Min] | 90 VAC, 180 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | 24 V |
VF-D320-DXXA Series
Switching Power Supplies ac-dc, 300 W, 5/24 Vdc, dual output, metal case w/ side fan
| Part | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Voltage - Isolation | Power (Watts) | Number of Outputs | Voltage - Output 2 | Efficiency | Current - Output 1 | Current - Output 2 | Standard Number | Mounting Type | Type | Voltage - Output 1 | Features | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 24 V | 75 % | 30 A | 8.33 A | 55024 60950-1 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Enclosed | 5 V | Adjustable Output PFC Universal Input | 101.6 mm | 177.8 mm | 7 " | 1.6 " | 4 " | 40.6 mm |
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 24 V | 75 % | 16.67 A | 8.33 A | 55024 60950-1 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Enclosed | 12 V | Adjustable Output PFC Universal Input | 101.6 mm | 177.8 mm | 7 " | 1.6 " | 4 " | 40.6 mm |
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 24 V | 75 % | 30 A | 8.33 A | 55024 60950-1 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Enclosed | 5 V | Adjustable Output PFC Universal Input | 101.6 mm | 177.8 mm | 7 " | 1.6 " | 4 " | 40.6 mm |
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 48 V | 75 % | 30 A | 4.16 A | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Enclosed | 5 V | Adjustable Output PFC Universal Input | 101.6 mm | 177.8 mm | 7 " | 1.6 " | 4 " | 40.6 mm |
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 48 V | 75 % | 30 A | 4.16 A | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Enclosed | 5 V | Adjustable Output PFC Universal Input | 101.6 mm | 177.8 mm | 7 " | 1.6 " | 4 " | 40.6 mm |
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 24 V | 75 % | 16.67 A | 8.33 A | 55024 60950-1 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Enclosed | 12 V | Adjustable Output PFC Universal Input | 101.6 mm | 177.8 mm | 7 " | 1.6 " | 4 " | 40.6 mm |
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 24 V | 75 % | 16.67 A | 8.33 A | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Open Frame | 12 V | Adjustable Output PFC Universal Input | 101.6 mm | 152.4 mm | 6 in | 1.5 " | 4 " | 38.1 mm |
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 24 V | 75 % | 30 A | 8.33 A | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Open Frame | 5 V | Adjustable Output PFC Universal Input | 101.6 mm | 152.4 mm | 6 in | 1.5 " | 4 " | 38.1 mm |
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 12 V | 75 % | 30 A | 16.67 A | 55024 55032 Class B 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Open Frame | 5 V | Adjustable Output PFC Universal Input | 101.6 mm | 152.4 mm | 6 in | 1.5 " | 4 " | 38.1 mm |
CUI Inc. | 90 VAC 180 VAC | 132 VAC 264 VAC | ITE (Commercial) | 70 °C | 0 °C | CB Scheme EN IEC SIQ TUV UL | 3000 V | 320 W | 2 | 24 V | 75 % | 16.67 A | 8.33 A | 55024 60950-1 61000-3-2 61000-3-3 62368-1 | Chassis Mount | Open Frame | 12 V | Adjustable Output PFC Universal Input | 101.6 mm | 152.4 mm | 6 in | 1.5 " | 4 " | 38.1 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 189.41 | |
Description
General part information
VF-D320-DXXA Series
Switching Power Supplies ac-dc, 300 W, 5/24 Vdc, dual output, metal case w/ side fan
