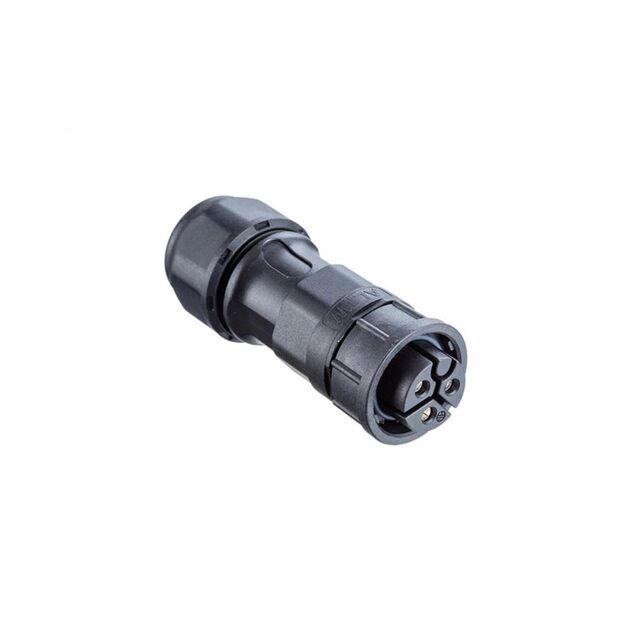

POWER, PWC, 20A, 03 PINS, FIELD

Search across all available documentation for this part.

Active

Amphenol LTW

POWER, PWC, 20A, 03 PINS, FIELD

Technical Specifications

Parameters and characteristics for this part

Specification	PWC-03BFFB-LL7APP

Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	20 A
Fastening Type	Push-Pull
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	277 V

Part	Mounting Type	Fastening Type	Backshell Material, Plating	Insert Material	Primary Material	Connector Type	Shielding	Voltage Rating	Material Flammability Rating	Termination	Contact Material	Features	Color	Current Rating (Amps)	Orientation	Contact Finish - Mating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Shell Material	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [custom]	Cable Opening [custom]
Amphenol LTW PWC-03BFFB-LL7APP	Free Hanging (In-Line)	Push-Pull	Thermoplastic	Thermoplastic	Plastic	Female Sockets Plug	Unshielded	277 V	UL94 V-0	Screw	Copper Alloy	Backshell Coupling Nut	Black	20 A	Keyed	Silver	IP67 - Dust Tight Waterproof	-40 °C	105 ░C
Amphenol LTW PWC-03BFFB-LL7SPP		Bayonet Lock		Polyamide (PA) Nylon Glass Filled	Plastic	Receptacle Female Sockets	Unshielded	277 V		Screw	Copper Alloy			20 A	Keyed	Gold	IP67 - Dust Tight Waterproof	-40 °C	105 ░C	Bulkhead - Front Side Nut	Glass Filled Nylon Polyamide (PA)	8 mm	6 mm	0.315 in	0.236 in
Amphenol LTW PWC-03BFFB-LL7LPP	Free Hanging (In-Line)		Thermoplastic	Thermoplastic	Plastic	Female Sockets Plug	Unshielded	277 V	UL94 V-0	Screw	Copper Alloy	Backshell Coupling Nut	Black	20 A	Keyed	Silver	IP67 - Dust Tight Waterproof	-40 °C	105 ░C							10 mm 12 mm	0.394 in 0.472 in
