121700A 0103000

Active

Belden Inc.

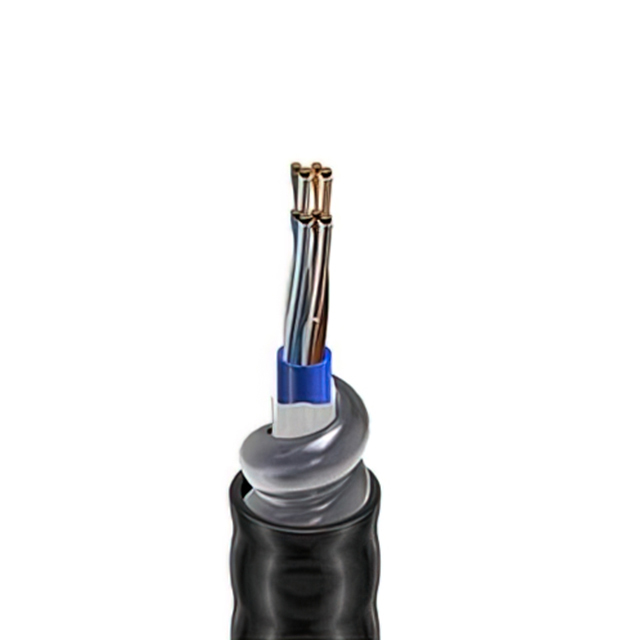

CABLE CAT5E 8CON 24AWG BLK

Search across all available documentation for this part.

Active

Belden Inc.

CABLE CAT5E 8CON 24AWG BLK

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	121700A 0103000	121700A Series

Cable Type	Multi-Pair, Cat5e	Multi-Pair, Cat5e
Conductor Insulation	Polyolefin (PO)	Polyolefin (PO)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand	Solid	Solid
Features	Oil Resistant, UV Resistant, Rip Cord	Oil Resistant, UV Resistant, Rip Cord
Jacket (Insulation) Diameter [diameter]	14.05 mm	14.05 mm
Jacket (Insulation) Diameter [diameter]	0.553 "	0.553 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm	1.143 mm
Jacket (Insulation) Thickness	0.045 in	0.045 in
Jacket Color	Black	Black
Length	914.4 m	914.4 m
Length	3000 ft	3000 ft
Number of Conductors	8	8
Operating Temperature [Max]	75 ░C	75 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Usage	Industrial, Network	Industrial, Network
Voltage	300 V	300 V
Wire Gauge	24 AWG	24 AWG

CABLE CAT5E 8CON 24AWG BLK

Part	Conductor Strand	Wire Gauge	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Conductor Material	Cable Type	Features	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Length	Length
Belden Inc. 121700A 0105000	Solid	24 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	75 ░C	Industrial, Network	Black	14.05 mm	0.553 "	Polyolefin (PO)	Copper, Bare	Multi-Pair, Cat5e	Oil Resistant, Rip Cord, UV Resistant	300 V	1.143 mm	0.045 in	8
Belden Inc. 121700A 0103000	Solid	24 AWG	Poly-Vinyl Chloride (PVC)	-40 °C	75 ░C	Industrial, Network	Black	14.05 mm	0.553 "	Polyolefin (PO)	Copper, Bare	Multi-Pair, Cat5e	Oil Resistant, Rip Cord, UV Resistant	300 V	1.143 mm	0.045 in	8	914.4 m	3000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	3000	$ 7.62

General part information

8 (4 Pair Twisted) Conductor Multi-Pair, Cat5e Cable Black 24 AWG 3000' (914.4m)
