3282-8PG-528

Active

Conxall/Switchcraft

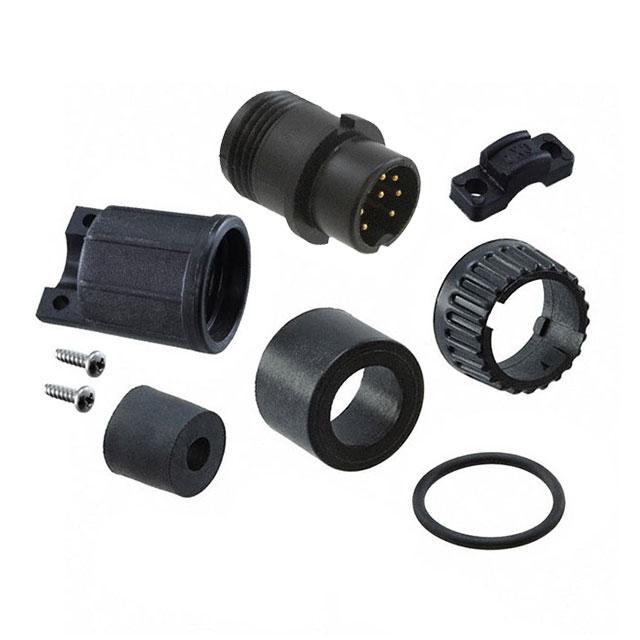

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multi-Con-X Connectors

3282-8PG-528

Active

Conxall/Switchcraft

CONN PLUG MALE 8P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet Multi-Con-X Connectors

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 11.84

Description

General part information

3282-8P Series

8 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Multi-Con-X Connectors

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3282-8PG-528	3282-8P Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	8.13 mm
Cable Opening [Max] [diameter]	7.37 mm	5.84 - 7.37 mm
Cable Opening [Max] [diameter]	0.29 in	0.23 - 0.32 in
Cable Opening [Min] [diameter]	7.11 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.28 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	5.6 A	5.6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	8	8
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3282-8P Series

CONN PLUG MALE 8P GOLD SLDR CUP

Part	Backshell Material, Plating	Contact Finish - Mating	Fastening Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Primary Material	Mounting Type	Current Rating (Amps)	Number of Positions	Orientation	Shielding	Contact Material	Features	Connector Type	Color	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3282-8PG-3DC	Nylon, Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell	Male Pins, Plug	Black
Conxall/Switchcraft 3282-8PG-318	Nylon, Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell	Male Pins, Plug	Black	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3282-8PG-321	Nylon, Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell	Male Pins, Plug	Black					5.33 mm	5.84 mm	0.21 in	0.23 in
Conxall/Switchcraft 3282-8PG-515	Nylon, Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell, Cable Clamp	Male Pins, Plug	Black									0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3282-8PG-528	Nylon, Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell, Cable Clamp	Male Pins, Plug	Black					7.11 mm	7.37 mm	0.28 in	0.29 in
Conxall/Switchcraft 3282-8PG-530	Nylon, Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell, Cable Clamp	Male Pins, Plug	Black					7.62 mm		0.3 in	0.32 in			8.13 mm
Conxall/Switchcraft 3282-8PG-315	Nylon, Polyamide (PA)	Gold	Bayonet Lock	600 V	-40 °C	115 °C	Weathertight	Plastic	Free Hanging (In-Line)	5.6 A	8	Keyed	Unshielded	Brass	Backshell	Male Pins, Plug	Black									0.15 in, 0.17 in	3.81 mm, 4.32 mm
