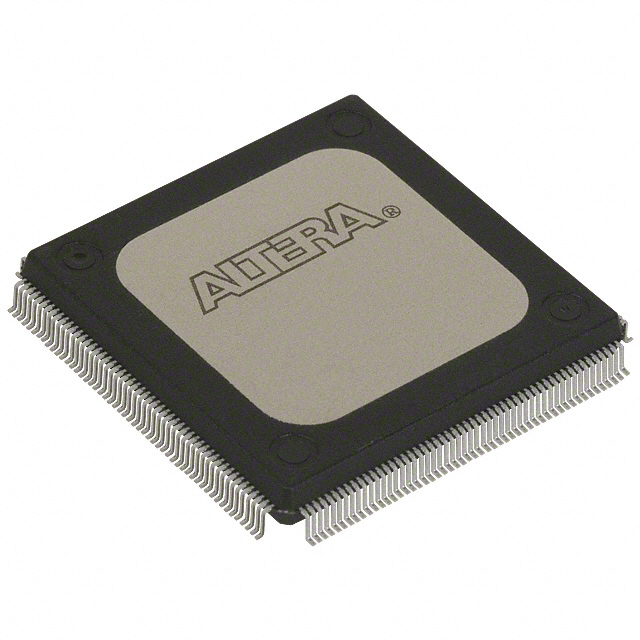

EPF10K30RC208-3

Obsolete

Altera

IC FPGA 147 I/O 208RQFP

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 147 I/O 208RQFP

Technical Specifications

Parameters and characteristics for this part

Specification	EPF10K30RC208-3

Mounting Type	Surface Mount
Number of Gates	69000
Number of I/O	147
Number of LABs/CLBs	216
Number of Logic Elements/Cells	1728
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	208-BFQFP Exposed Pad
Supplier Device Package	208-RQFP (28x28)
Total RAM Bits [custom]	12288 bits
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Total RAM Bits	Package / Case	Supplier Device Package	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Number of Logic Elements/Cells	Number of Gates	Mounting Type	Number of LABs/CLBs	Voltage - Supply [Min]	Voltage - Supply [Max]	Total RAM Bits [custom]
Altera EPF10K30ETC144-1N	24576 Bits	144-LQFP	144-TQFP (20x20)	102	70 °C	0 °C	1728	119000	Surface Mount	216	2.375 V	2.625 V
Altera EPF10K30RC208-3		208-BFQFP Exposed Pad	208-RQFP (28x28)	147	70 °C	0 °C	1728	69000	Surface Mount	216	4.75 V	5.25 V	12288 bits
Altera EPF10K30AQC208-2N		208-BFQFP	208-PQFP (28x28)	147	70 °C	0 °C	1728	69000	Surface Mount	216	3 V	3.6 V	12288 bits
Altera EPF10K30RC240-3		240-BFQFP Exposed Pad	240-RQFP (32x32)	189	70 °C	0 °C	1728	69000	Surface Mount	216	4.75 V	5.25 V	12288 bits
Altera EPF10K30AQC240-2N		240-BFQFP	240-PQFP (32x32)	189	70 °C	0 °C	1728	69000	Surface Mount	216	3 V	3.6 V	12288 bits
Altera EPF10K30AQC240-3N		240-BFQFP	240-PQFP (32x32)	189	70 °C	0 °C	1728	69000	Surface Mount	216	3 V	3.6 V	12288 bits
Altera EPF10K30AQC240-3		240-BFQFP	240-PQFP (32x32)	189	70 °C	0 °C	1728	69000	Surface Mount	216	3 V	3.6 V	12288 bits
Altera EPF10K30EQI208-2N	24576 Bits	208-BFQFP	208-PQFP (28x28)	147	85 °C	-40 °C	1728	119000	Surface Mount	216	2.375 V	2.625 V
Altera EPF10K30RC240-4		240-BFQFP Exposed Pad	240-RQFP (32x32)	189	70 °C	0 °C	1728	69000	Surface Mount	216	4.75 V	5.25 V	12288 bits
Altera EPF10K30ETC144-2N	24576 Bits	144-LQFP	144-TQFP (20x20)	102	70 °C	0 °C	1728	119000	Surface Mount	216	2.375 V	2.625 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

FLEX-10K® Field Programmable Gate Array (FPGA) IC 147 12288 1728 208-BFQFP Exposed Pad
