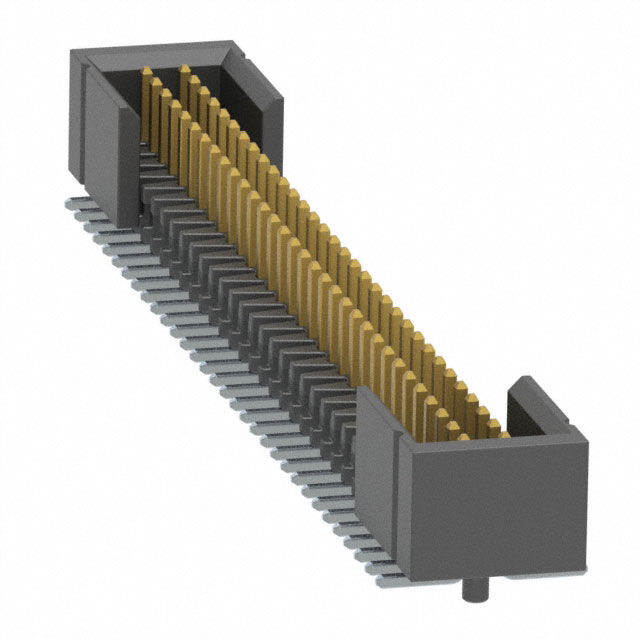

FTMH-132-02-L-DV-ES-A

Active

Samtec Inc.

CONN HEADER SMD 64POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FTMH-132-02-L-DV-ES-A

Active

Samtec Inc.

CONN HEADER SMD 64POS 1MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FTMH-132-02-L-DV-ES-A

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating [x]	1.9 mm
Contact Length - Mating [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2.8 A per Contact
Fastening Type	Push-Pull
Features	Board Guide, End Shrouds
Insulation Color	Black
Insulation Height	1.5 mm
Insulation Height	0.059 "
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Shrouding	Unshrouded
Termination	Solder

FTMH-132 Series

Part	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Contact Finish - Mating	Number of Rows	Features	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Shrouding	Connector Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Insulation Color	Termination	Number of Positions Loaded	Mounting Type	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Contact Length - Mating	Contact Length - Mating
Samtec Inc. FTMH-132-02-L-DV-ES-A	2.8 A per Contact	Male Pin	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Gold	2	Board Guide End Shrouds	Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square	1.9 mm	0.075 in	1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull
Samtec Inc. FTMH-132-02-F-DV-A-P	2.8 A per Contact	Male Pin	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Gold	2	Board Guide Pick and Place	Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square	1.9 mm	0.075 in	1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull
Samtec Inc. FTMH-132-03-F-DV	2.8 A per Contact	Male Pin	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Gold	2		Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square			1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull	0.065 in	1.65 mm
Samtec Inc. FTMH-132-03-L-DV	2.8 A per Contact	Male Pin	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Gold	2		Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square			1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull	0.065 in	1.65 mm
Samtec Inc. FTMH-132-02-F-DV-ES-P-TR	2.8 A per Contact	Male Pin	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Gold	2	End Shrouds Pick and Place	Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square	1.9 mm	0.075 in	1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull
Samtec Inc. FTMH-132-03-L-DV-ES-A-P	2.8 A per Contact	Male Pin	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Gold	2		Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square			1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull	0.065 in	1.65 mm
Samtec Inc. FTMH-132-03-L-DV-EC-A	2.8 A per Contact	Male Pin	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Gold	2	Board Guide Board Lock End Shrouds	Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square			1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull	0.065 in	1.65 mm
Samtec Inc. FTMH-132-02-F-DV-EP	2.8 A per Contact	Male Pin	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Gold	2	Board Guide End Shrouds	Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square	1.9 mm	0.075 in	1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull
Samtec Inc. FTMH-132-03-F-DV-EC-P	2.8 A per Contact	Male Pin	3 µin	0.076 µm	Liquid Crystal Polymer (LCP)	Gold	2	Board Lock End Shrouds Pick and Place	Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square			1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull	0.065 in	1.65 mm
Samtec Inc. FTMH-132-03-LM-DV-EC	2.8 A per Contact	Male Pin	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Gold	2	Board Lock End Shrouds	Tin	0.039 "	1 mm	Unshrouded	Header	UL94 V-0	0.039 in	1 mm	Square			1.5 mm	0.059 "	Black	Solder	All	Surface Mount	Phosphor Bronze	64	-55 °C	125 °C	Push-Pull	0.065 in	1.65 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	17	$ 10.86

Description

General part information

FTMH-132 Series

Connector Header Surface Mount 64 position 0.039" (1.00mm)
