342-10-160-00-594000

Active

Mill-Max Manufacturing Corp.

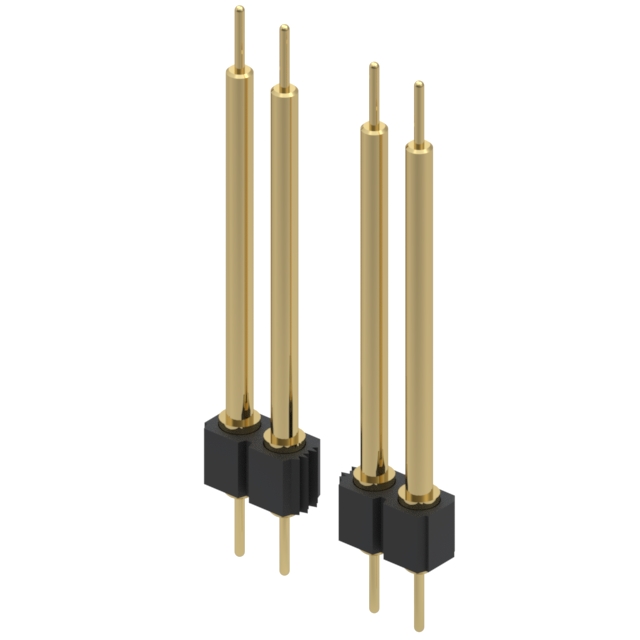

CONN HDR DIP POST 60POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

342-10-160-00-594000

Active

Mill-Max Manufacturing Corp.

CONN HDR DIP POST 60POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-10-160-00-594000

Color	Black
Connector Type	DIP, DIL - Header
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Type	Post, Extended
Mounting Type	Through Hole
Number of Positions	60
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Termination	Solder

342-10 Series

...

Part	Pitch [x]	Pitch [x]	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Overall Pin [x]	Length - Overall Pin [x]	Termination	Number of Rows	Contact Finish - Post (Mating)	Length - Tail [custom]	Length - Tail [custom]	Number of Positions	Connector Type	Contact Finish	Contact Type	Contact Finish Thickness	Contact Finish Thickness
Mill-Max Manufacturing Corp. 342-10-149-00-592000	2.54 mm	0.1 in	0.335 in	8.5 mm	Through Hole	Black	0.25 Ám	10 Áin	3.18 mm	0.125 in	0.585 in	14.859 mm	Solder	1	Gold	3.18 mm	0.125 in	49
Mill-Max Manufacturing Corp. 342-10-148-00-592000	2.54 mm	0.1 in	0.335 in	8.5 mm	Through Hole	Black	0.25 Ám	10 Áin	3.18 mm	0.125 in	0.585 in	14.859 mm	Solder	1	Gold	3.18 mm	0.125 in	48
Mill-Max Manufacturing Corp. 342-10-126-00-594000	2.54 mm	0.1 in			Through Hole	Black							Solder	1				26	DIL - Header DIP	Gold	Post Extended	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 342-10-156-00-591000	2.54 mm	0.1 in			Through Hole	Black							Solder	1				56	DIL - Header DIP	Gold	Post Extended	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 342-10-120-00-592000	2.54 mm	0.1 in			Through Hole	Black							Solder	1				20	DIL - Header DIP	Gold	Post Extended	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 342-10-128-00-593000	2.54 mm	0.1 in			Through Hole	Black							Solder	1				28	DIL - Header DIP	Gold	Post Extended	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 342-10-130-00-594000	2.54 mm	0.1 in			Through Hole	Black							Solder	1				30	DIL - Header DIP	Gold	Post Extended	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 342-10-102-00-593000	2.54 mm	0.1 in			Through Hole	Black							Solder	1				2	DIL - Header DIP	Gold	Post Extended	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 342-10-160-00-594000	2.54 mm	0.1 in			Through Hole	Black							Solder	1				60	DIL - Header DIP	Gold	Post Extended	10 Áin	0.25 Ám
Mill-Max Manufacturing Corp. 342-10-136-00-591000	2.54 mm	0.1 in			Through Hole	Black							Solder	1				36	DIL - Header DIP	Gold	Post Extended	10 Áin	0.25 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.08
		10	$ 21.96
		100	$ 19.66
		500	$ 18.03

Description

General part information

342-10 Series

60 Position DIP, DIL - Header Connector Post, Extended Gold

Documents

Technical documentation and resources

No documents available
